REAR END PANEL REMOVAL [PANEL REPLACEMENT]

id098008744500

Symbol Mark

am3uub00000220

Removal Procedure

4SD

Shallow tire well type

1.  Drill the 53 locations indicated by (A) shown in the figure.

2.  Drill the 2 locations indicated by (B) from the interior.

am3uub00000221

3.  Remove the rear end panel.

Deep tire well type

1.  Drill the 57 locations indicated by (A) shown in the figure.

2.  Drill the 2 locations indicated by (B) from the interior.

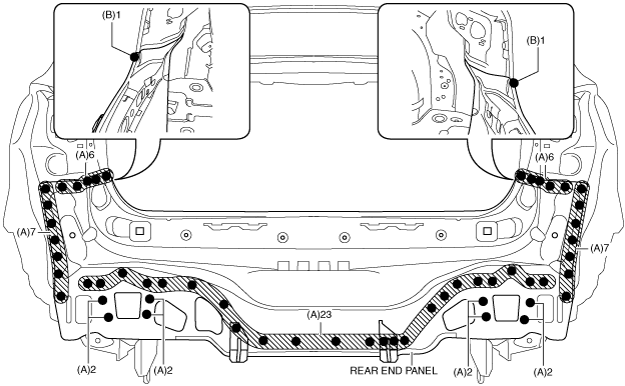

am3zzb00000058

3.  Remove the rear end panel.

5HB

Shallow tire well type

1.  Drill the 57 locations indicated by (A) shown in the figure.

2.  Drill the 14 locations indicated by (B) from the interior.

am3uub00000222

3.  Remove the rear end panel.

Deep tire well type

1.  Drill the 60 locations indicated by (A) shown in the figure.

2.  Drill the 10 locations indicated by (B) from the interior.

am3zzb00000059

3.  Remove the rear end panel.
