REAR END PANEL INSTALLATION [PANEL REPLACEMENT]

id098008744600

Symbol Mark

am3uub00000223

Installation Procedure

4SD

Shallow tire well type

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug weld the 53 locations indicated by (A) shown in the figure.

5.  Plug weld the 2 locations indicated by (B) from the interior.

am3uub00000224

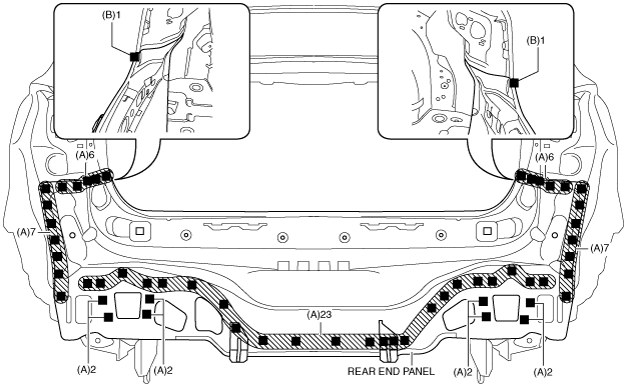

Deep tire well type

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug weld the 57 locations indicated by (A) shown in the figure.

5.  Plug weld the 2 locations indicated by (B) from the interior.

am3zzb00000060

5HB

Shallow tire well type

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug weld the 57 locations indicated by (A) shown in the figure.

5.  Plug weld the 14 locations indicated by (B) from the interior.

am3uub00000225

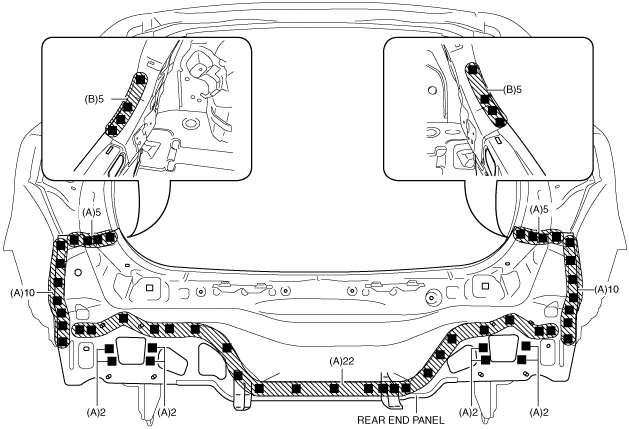

Deep tire well type

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Plug weld the 60 locations indicated by (A) shown in the figure.

5.  Plug weld the 10 locations indicated by (B) from the interior.

am3zzb00000061
