REAR FENDER PANEL REMOVAL [PANEL REPLACEMENT]

id098008744900

Symbol Mark

am3uub00000195

Removal Procedure

4SD

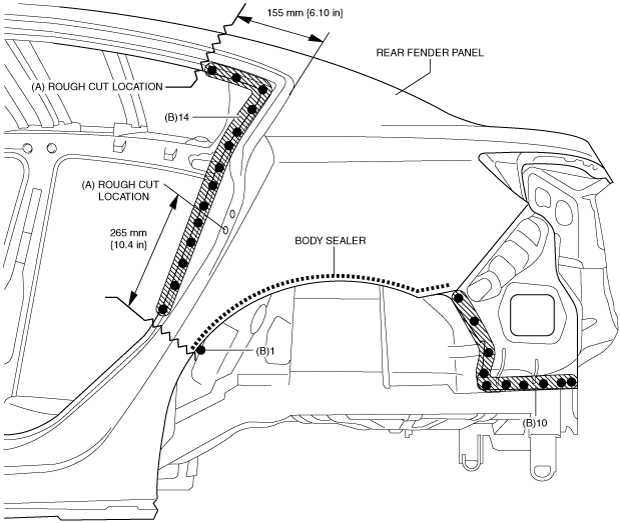

1.  Rough cut at the locations indicated by (A) shown in the figure.

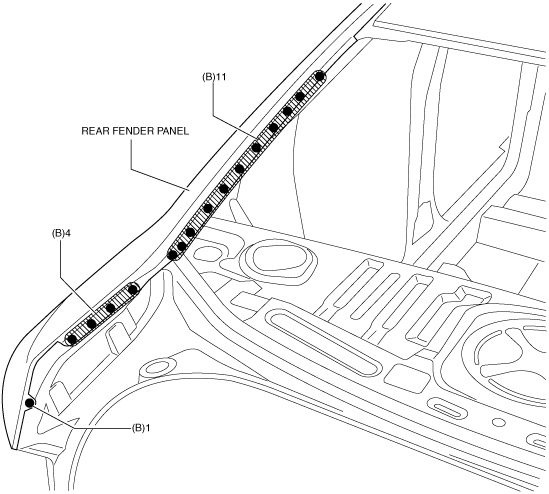

2.  Drill the 57 locations indicated by (B) shown in the figure.

am3zzb00000083

am3zzb00000084

am3uub00000198

3.  Remove the rear fender panel.

Note

•  The rear fender panel and the rear pillar inner are joined with body sealer at the tire arch line. Use a spatula to separate the rear fender panel from the rear pillar inner, then remove the rear fender panel.

5HB

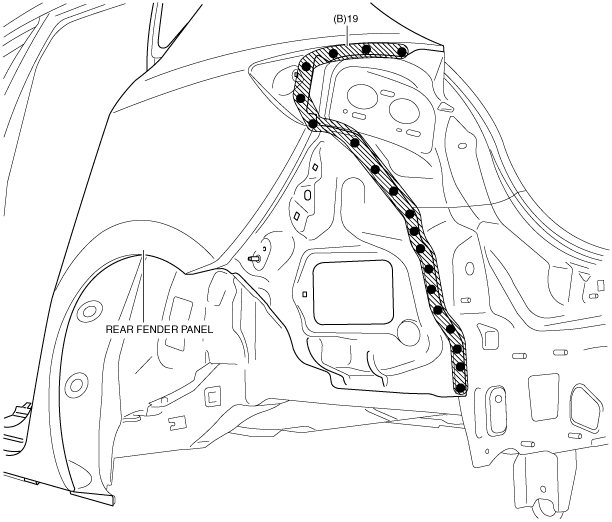

1.  Rough cut at the locations indicated by (A) shown in the figure.

2.  Drill the 58 locations indicated by (B) shown in the figure.

am3uub00000199

am3uub00000200

am3uub00000201

3.  Remove the rear fender panel.

Note

•  The rear fender panel and the rear pillar inner are joined with body sealer at the tire arch line. Use a spatula to separate the rear fender panel from the rear pillar inner, then remove the rear fender panel.
