REAR FENDER PANEL INSTALLATION [PANEL REPLACEMENT]

id098008745000

Symbol Mark

am3uub00000202

Installation Procedure

4SD

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  Before installing new parts, apply body sealer to the wheel arch line.

4.  After temporarily installing new parts, make sure the related parts fit properly.

5.  Cut-and-join area locations indicated by (A) shown in the figure.

6.  Plug weld the 40 locations indicated by (B) shown in the figure.

7.  Spot weld the 22 locations indicated by (C) shown in the figure while rear fender panel.

am3uub00000203

am3uub00000204

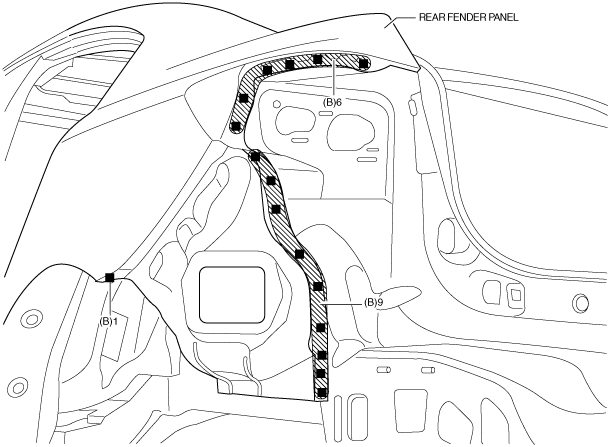

am3uub00000205

5HB

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  Before installing new parts, apply body sealer to the wheel arch line.

4.  After temporarily installing new parts, make sure the related parts fit properly.

5.  Cut-and-join area locations indicated by (A) shown in the figure.

6.  Plug weld the 51 locations indicated by (B) shown in the figure.

7.  Spot weld the 13 locations indicated by (C) shown in the figure while rear fender panel.

am3uub00000276

am3uub00000207

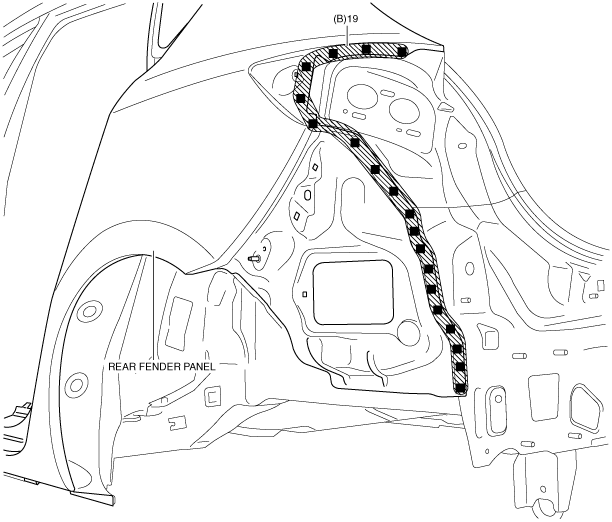

am3uub00000208
