FRONT BUMPER STAY REMOVAL [PANEL REPLACEMENT]

id098008979800

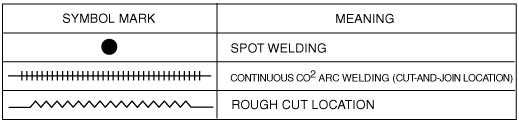

Symbol Mark

am3uub00000110

Removal Procedure

LH

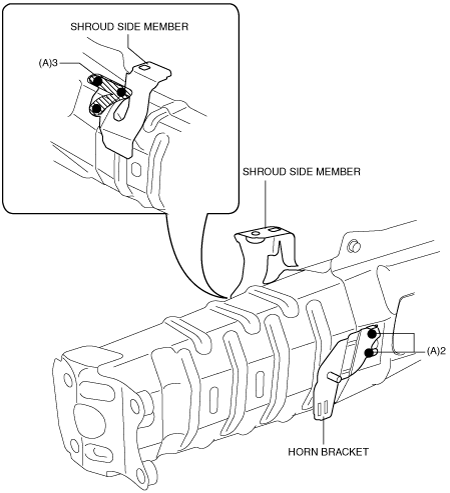

1.  Drill the 5 locations indicated by (A) shown in the figure.

am3uub00000111

2.  Remove the shroud side member and horn bracket.

3.  Rough cut area locations indicated by (B) shown in the figure while remove the front bumper stay.

am3uub00000246

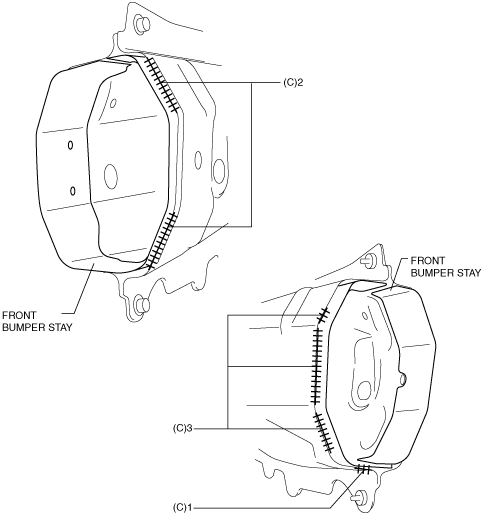

4.  Grind the 6 locations indicated by (C) shown in the figure.

am3uub00000113

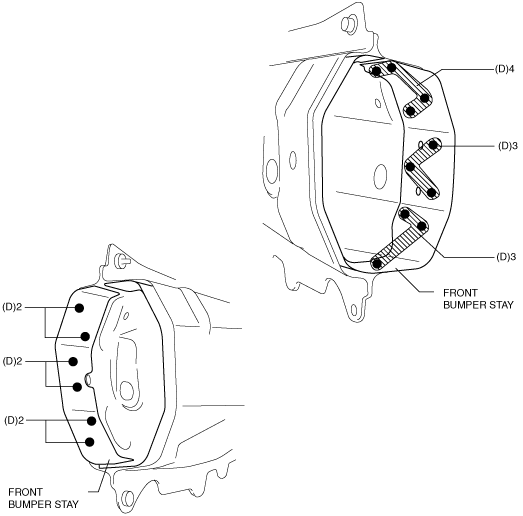

5.  Grind the 16 locations indicated by (D) shown in the figure.

am3uub00000114

6.  Remove the front bumper stay.

RH

1.  Remove the bolt.

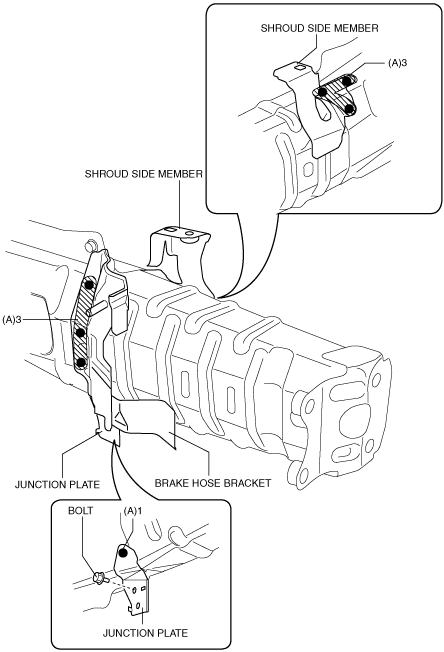

2.  Drill the 7 locations indicated by (A) shown in the figure.

am3uub00000247

3.  Remove the shroud side member, brake hose bracket and junction plate.

4.  Rough cut area locations indicated by (B) shown in the figure while remove the front bumper stay.

am3uub00000248

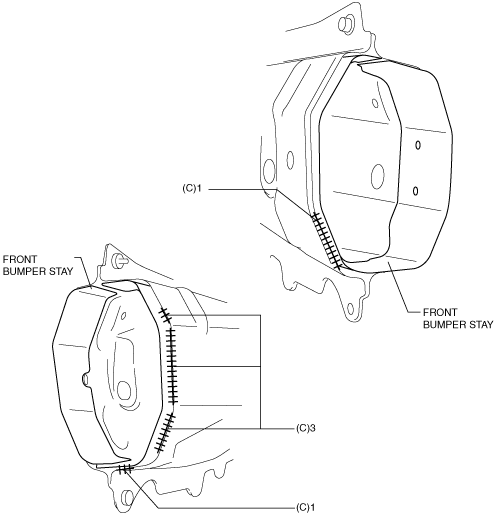

5.  Grind the 5 locations indicated by (C) shown in the figure.

am3uub00000117

6.  Grind the 16 locations indicated by (C) shown in the figure.

am3uub00000118

7.  Remove the front bumper stay.
