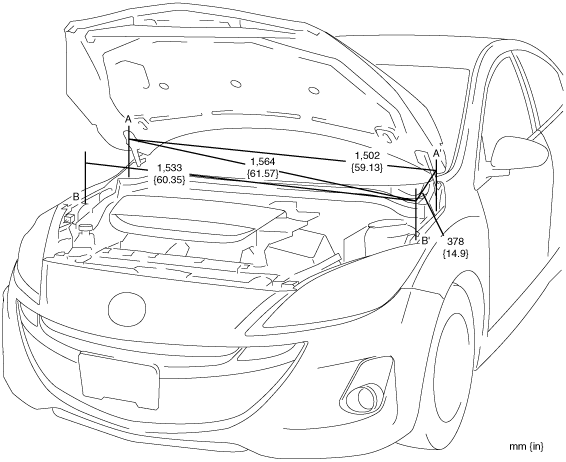

FRONT BODY DIMENSIONS (1) [DIMENSIONS]
id098010990100
am3uub00000050
|
am3uub00000051
|
|

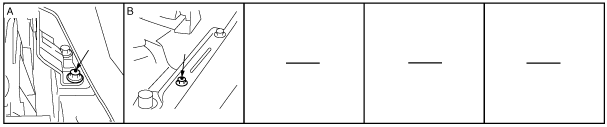

Point symbol |
Designation |
Hole diameter or bolt or nut size mm {in} |
|---|---|---|
|
A
|
Roof seamless location
|
-
|
|
B
|
Front pillar projection location
|
-
|
|
C
|
Bonnet hinge installation hole
|
φ10 {0.39}
|
|
D
|
Front suspension upper mounting installation hole
|
φ12.8 {0.504}
|
|
E
|
Front combination light installation hole
|
φ7 {0.3}
|
With Mechanical Part Dimension
