FRONT BODY DIMENSIONS (2) [DIMENSIONS]

id098010990200


L.H.D.


Vehicle identification number

•  JM7 BL12F*#, JM7 BL12Z*#, JM7 BL14F*#, JM7 BL14Z*#, JM7 BL1HZ*#, JM7 BL1SZ*#, JM7 BL22F*#, JM7 BL22Z*#, JM7 BL24F*#, JM7 BL24Z*#, JM7 BL2HZ*#, JM7 BL2SZ*#, BL10F2, BL10Z2
am3zzb00000331
am3uub00000053

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}
A
Front wiper motor and link installation hole
φ7 {0.3}
B
Front suspension upper mounting installation hole
φ12.8 {0.504}
C
No.4 engine mounting bracket installation bolt
M10 {0.39}
D
No.4 engine mounting bracket installation bolt
M10 {0.39}
E
Front side frame datum hole
φ7 {0.3}
F
Front side frame datum hole
φ10 {0.39}
G
Front bumper stay datum s
12×18
{0.47×0.71}
H
Front fender stay installation hole
φ7 {0.3}
I
Shroud side panel datum slot
RH:9×10
{0.36×0.39}
LH:φ7 {0.3}
J
Front bumper reinforcement installation hole
φ12 {0.47}
K
Front bumper reinforcement installation hole
φ12 {0.47}


Vehicle identification number

•  JMZ BL12F6*#, JMZ BL12F7*#, JMZ BL12Z2*#, JMZ BL12Z5*#, JMZ BL14F6*#, JMZ BL14F7*#, JMZ BL14Z2*#, JMZ BL14Z5*#, JMZ BLA2Y6*#, JMZ BLA4Y6*#, JMZ BLB2F7*#, JMZ BLB2G6*#, JMZ BLB2Y6*#, JMZ BLB4Y6*#, JMZ BLB2Z2*#, JMZ BLB2Z5*#, JMZ BLB436*#, JMZ BLB4A6*#, JMZ BLB4C6*#, JMZ BLB4F7*#, JMZ BLB4G6*#, JMZ BLB4Z2*#, JMZ BLB4Z5*#, JM7 BL12F*#, JM7 BL12Z*#, JM7 BL14F*#, JM7 BL14Z*#, JM7 BL1HZ*#, JM7 BL1SZ*#, JM7 BL22F*#, JM7 BL22Z*#, JM7 BL24F*#, JM7 BL24Z*#, JM7 BL2HZ*#, JM7 BL2SZ*#, BL10F2, BL10Z2
am3zzb00000069

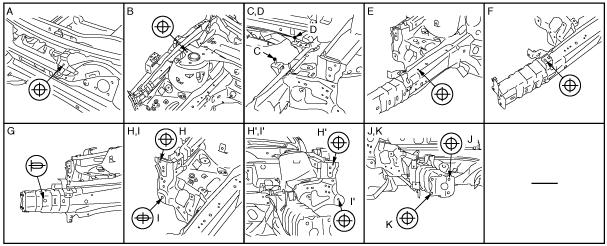

am3zzb00000070

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}
A
Front wiper motor and link installation hole
φ7 {0.3}
B
Front suspension upper mounting installation hole
φ12.8 {0.504}
C
No.4 engine mounting bracket installation bolt
M10 {0.39}
D
No.4 engine mounting bracket installation bolt
M10 {0.39}
E
Front side frame datum hole
φ7 {0.3}
F
Front side frame datum hole
φ10 {0.39}
G
Front bumper stay datum s
12×18
{0.47×0.71}
H
Front fender stay installation hole
φ7 {0.3}
I
Shroud side panel datum slot
RH:9×10
{0.36×0.39}
LH:φ7 {0.3}
J
Front bumper reinforcement installation hole
φ12 {0.47}
K
Front bumper reinforcement installation hole
φ12 {0.47}


R.H.D.


Vehicle identification number

•  JMZ BL12F6*#, JMZ BL12F7*#, JMZ BL12Z2*#, JMZ BL12Z5*#, JMZ BL14F6*#, JMZ BL14F7*#, JMZ BL14Z2*#, JMZ BL14Z5*#, JMZ BLA2Y6*#, JMZ BLA4Y6*#, JMZ BLB2F7*#, JMZ BLB2G6*#, JMZ BLB2Y6*#, JMZ BLB4Y6*#, JMZ BLB2Z2*#, JMZ BLB2Z5*#, JMZ BLB436*#, JMZ BLB4A6*#, JMZ BLB4C6*#, JMZ BLB4F7*#, JMZ BLB4G6*#, JMZ BLB4Z2*#, JMZ BLB4Z5*#, JM0 BL103200, JM0 BL107200, JM0 BL10C200, JM0 BL10F200, JM0 BL10L200, JM6 BL1032*0, JM6 BL1052*0, JM6 BL1072*0, JM6 BL10F2*0, JM6 BL10L2*0, JM6 BL10Z2*0

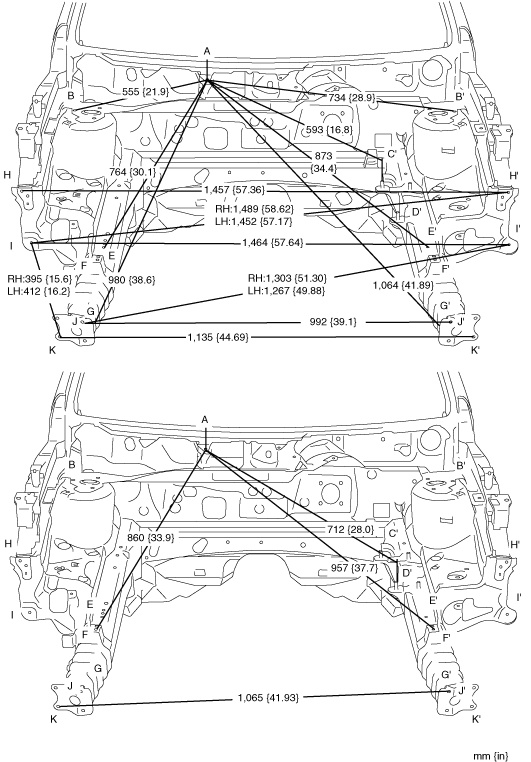

am3zzb00000071
am3zzb00000072

Point symbol

Designation

Hole diameter or bolt or nut size mm {in}
A
Front wiper motor and link installation hole
φ7 {0.3}
B
Front suspension upper mounting installation hole
φ12.8 {0.504}
C
No.4 engine mounting bracket installation bolt
M10 {0.39}
D
No.4 engine mounting bracket installation bolt
M10 {0.39}
E
Front side frame datum hole
φ7 {0.3}
F
Front side frame datum hole
φ10 {0.39}
G
Front bumper stay datum s
12×18
{0.47×0.71}
H
Front fender stay installation hole
φ7 {0.3}
I
Shroud side panel datum slot
RH:9×10
{0.36×0.39}
LH:φ7 {0.3}
J
Front bumper reinforcement installation hole
φ12 {0.47}
K
Front bumper reinforcement installation hole
φ12 {0.47}
