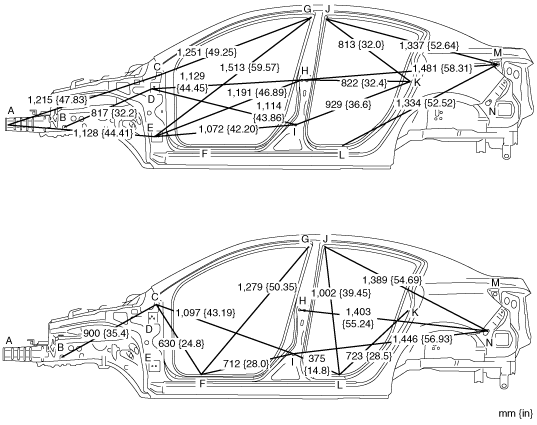

CABIN SIDE FRAME DIMENSIONS [DIMENSIONS]
id098010990400
4SD
am3zzb00000073
|
am3uub00000055
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size mm {in} |
|---|---|---|
|
A
|
Front bumper stay datum slot
|
12 ×18
{0.47×0.71}
|
|
B
|
Front side frame datum hole
|
φ7 {0.3}
|
|
C
|
Front fender installation hole
|
φ10 {0.39}
|
|
D
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
E
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
F
|
Side frame (outer) notch
|
-
|
|
G
|
Side frame (outer) projection location
|
-
|
|
H
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
I
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
J
|
Side frame (outer) projection location
|
-
|
|
K
|
Rear door striker installation hole
|
φ13 {0.51}
|
|
L
|
Side frame (outer) notch
|
-
|
|
M
|
Rear combination light installation square hole
|
8.1 ×8.1
{0.47×0.71}
|
|
N
|
Rear bumper slider installation bolt
|
M6 {0.2}
|
5HB
am3zzb00000074
|
am3uub00000057
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size mm {in} |
|---|---|---|
|
A
|
Front bumper stay datum slot
|
12 ×18
{0.47×0.71}
|
|
B
|
Front side frame datum hole
|
φ7 {0.3}
|
|
C
|
Front fender installation hole
|
φ10 {0.39}
|
|
D
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
E
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
F
|
Side frame (outer) notch
|
-
|
|
G
|
Side frame (outer) projection location
|
-
|
|
H
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
I
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
J
|
Side frame (outer) projection location
|
-
|
|
K
|
Rear door striker installation hole
|
φ13 {0.51}
|
|
L
|
Side frame (outer) notch
|
-
|
|
M
|
Rear combination light installation square hole
|
8.1 ×8.1
{0.47×0.71}
|
|
N
|
Rear bumper slider installation bolt
|
M6 {0.2}
|
