OIL STRAINER [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0111h8002400


Purpose, Function

•  The oil strainer suctions the engine oil in the oil pan using the oil pump vacuum. The engine oil is filtered by the internal filter at that time.

Construction

•  The oil strainer is installed on the suction port of the oil pump.

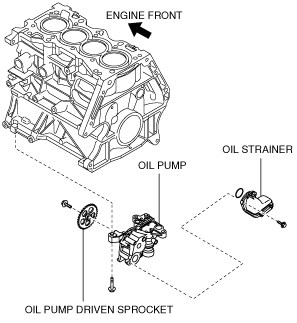

SKYACTIV-G 1.5, SKYACTIV-G 2.0

am6zzn00002421

SKYACTIV-G 2.5

am6zzn00002422
•  The oil strainer has a filter in the inside.

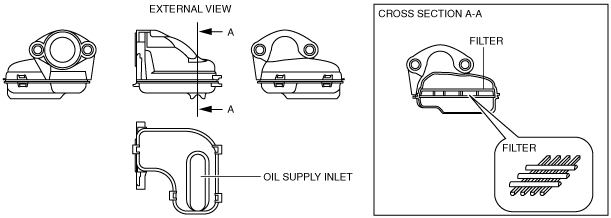

SKYACTIV-G 1.5

am3zzn00004289

SKYACTIV-G 2.0

ac5wzn00001009

SKYACTIV-G 2.5

am6zzn00002423
