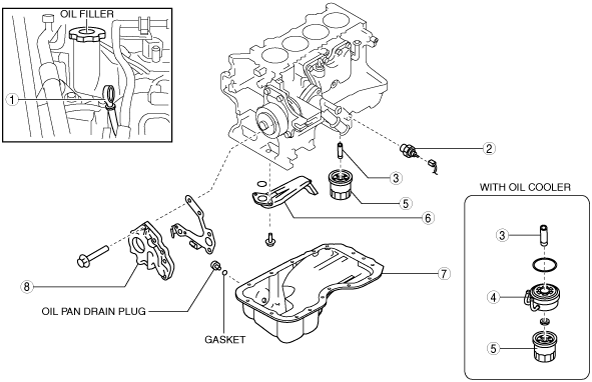

LUBRICATION SYSTEM LOCATION INDEX [MZR 1.6]

id0111s1800100

am3zzw00016108

1	Dipstick (See ENGINE OIL LEVEL INSPECTION [MZR 1.6].) (See ENGINE OIL REPLACEMENT [MZR 1.6].)
2	Oil pressure switch (See OIL PRESSURE INSPECTION [MZR 1.6].)
3	Oil filter joint (See OIL FILTER JOINT REMOVAL/INSTALLATION [MZR 1.6].)
4	Oil cooler (if equipped) (See OIL COOLER REMOVAL/INSTALLATION [MZR 1.6].)
5	Oil filter (See OIL FILTER REPLACEMENT [MZR 1.6].)
6	Oil strainer (See OIL PAN REMOVAL/INSTALLATION [MZR 1.6].)
7	Oil pan (See OIL PAN REMOVAL/INSTALLATION [MZR 1.6].)
8	Oil pump (See OIL PUMP REMOVAL/INSTALLATION [MZR 1.6].) (See OIL PUMP DISASSEMBLY/ASSEMBLY [MZR 1.6].) (See OIL PUMP INSPECTION [MZR 1.6].)
