VACUUM PUMP [SKYACTIV-D 1.5]


id0113q2003800


Purpose, Function

•  Ensures vacuum required for braking force to compensate for the decrease in intake manifold vacuum applied to the power brake unit caused by the retard intake valve closing. In addition, it secure vacuum pressure necessary to operate the turbocharger actuator of the turbocharger with variable turbine geometry.

Construction

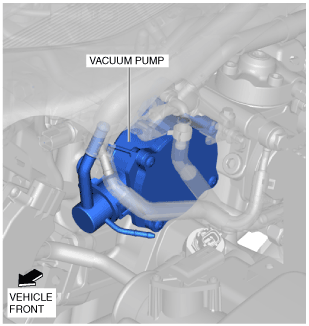

•  The vacuum pump is located on the engine (rear).
am2zzn00003357

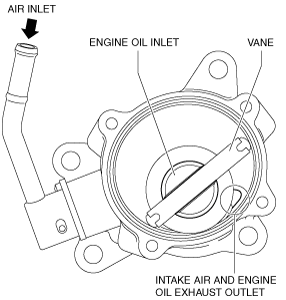

•  For smooth vane rotation, a single-vane type vacuum pump equipped with a lubrication passage has been adopted for circulating a part of the engine oil.
am2zzn00003358

Operation

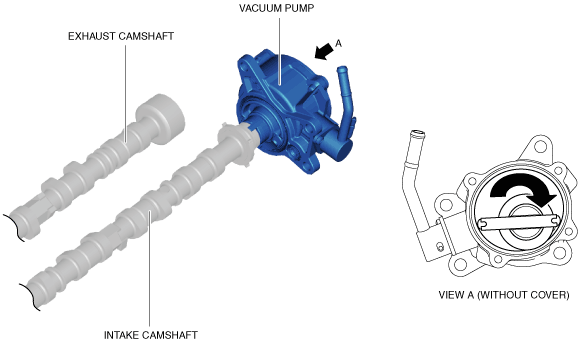

•  Because the vacuum pump is directly engaged with the intake camshaft, the vane in the vacuum pump rotates together with the intake camshaft, and the vacuum chamber is expanded and vacuum is generated. Intake air and engine oil are exhausted from the exhaust outlet.
am2zzn00003359

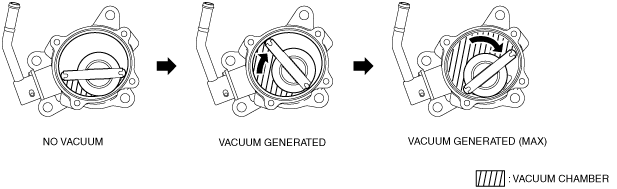

Vacuum generation mechanism

am2zzn00003360

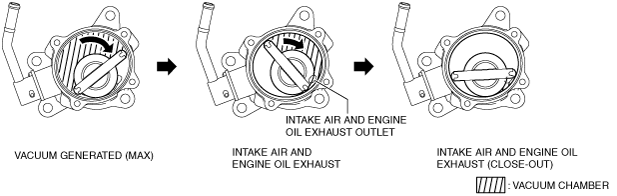

Intake air and engine oil exhaust mechanism

am2zzn00003361
