MAIN SILENCER [SKYACTIV-D 2.2]

id0115z7101000

Purpose, Function

• Reduces the exhaust noise.

Construction

• The main silencer is installed to the vehicle rear, under the trunk compartment.

am3zzn00004327

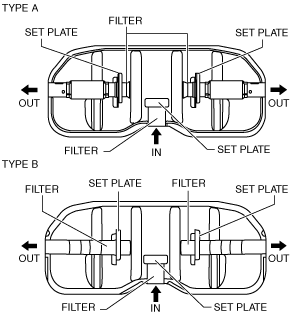

• The main silencer consists of the filters and set plates.

am3zzn00004967
