ROLLOVER VALVE CONSTRUCTION/OPERATION [MZR 1.6]


id011607103000

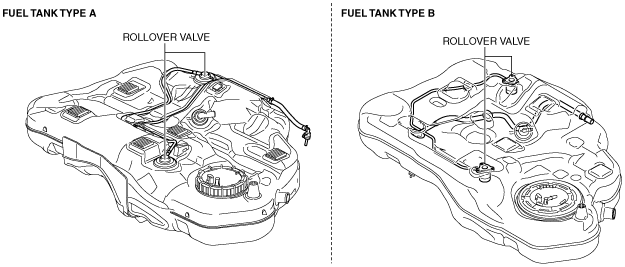

•  The rollover valve is built into the fuel tank.
am3zzn00004856

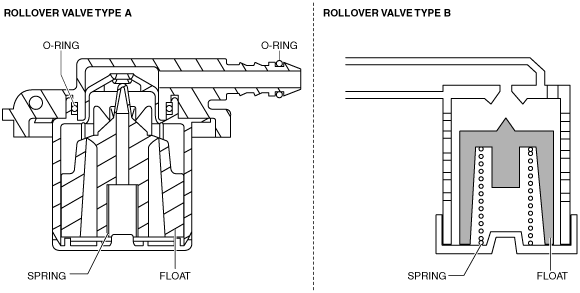

•  The rollover valve consists of a float, O-ring and spring.
am3zzn00004857
•  The rollover valve utilizes a combination of float weight, spring force, and buoyancy. When the float is immersed in the fuel, the float (valve) closes to block the sealing surface of the passage.
