ROLLOVER VALVE [SKYACTIV-D 1.5]


id0116q2122900


Purpose, Function

•  The rollover valve prevents fuel flow into the evaporative gas passage during sudden cornering or vehicle rollover.

Construction

•  The rollover valve is built into the fuel tank.

Fuel tank type A

am3zzn00005097

Fuel tank type B

am3zzn00005098
•  The rollover valve consists of a float, O-ring and spring.

Rollover valve type A

am3zzn00005099

Rollover valve type B

am3zzn00005100

Operation

•  The rollover valve utilizes a combination of float weight, spring force, and buoyancy. When the float is immersed in the fuel, the float (valve) closes to block the sealing surface of the passage.

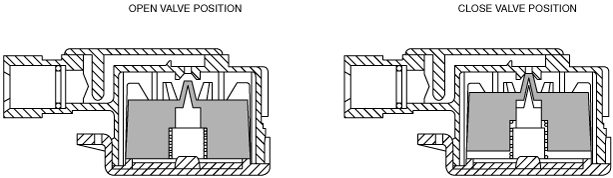

Rollover valve type A

am3zzn00005101

Rollover valve type B

am3zzn00005102
