ROLLOVER VALVE [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]


id0116ze122900


Purpose, Function

•  Prevents fuel from flowing into the evaporative gas passage during sudden cornering or vehicle rollover.

Construction

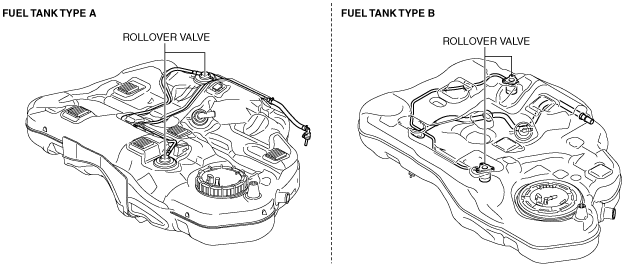

•  The rollover valve is built into the fuel tank.
am3zzn00004859
•  The rollover valve consists of a float, O-ring and spring.
am3zzn00004857

Operation

•  The rollover valve utilizes a combination of float weight, spring force, and buoyancy. When the float is immersed in the fuel, the float (valve) closes to block the sealing surface of the passage.
