CATCH TANK [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]
id0116ze174500
Purpose, Function
• Suppresses pulsation occurring before evaporative gas is inducted into the intake manifold.
Construction

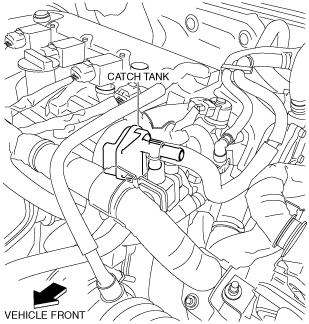

• The catch tank is installed in the engine compartment.
am6xun00001017

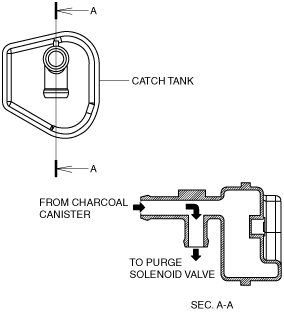

Operation
• When evaporative gas flows from the charcoal canister to the purge solenoid valve, pulsation is suppressed by passing the evaporative gas through the hollowing of the catch tank.
