GENERATOR DISASSEMBLY/ASSEMBLY [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-ELOOP)]


id0117i68004i8

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

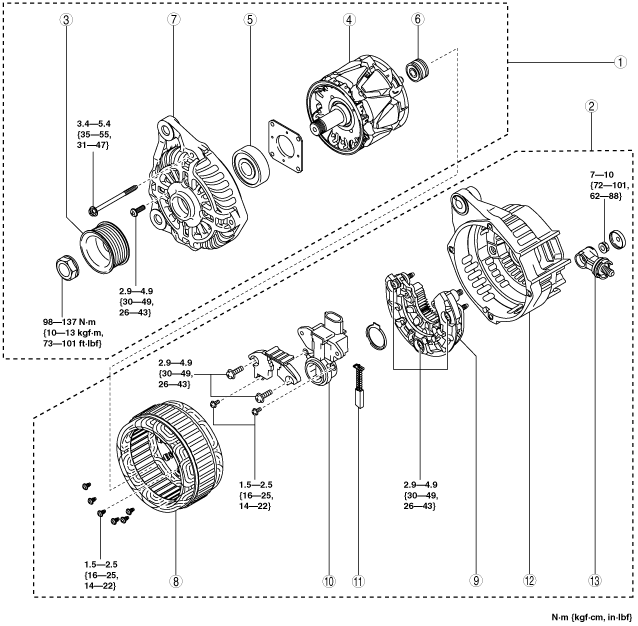

Part number other than Mazda (P51X)*

am3zzw00017954

1
Rotor component
2
Stator coil component
3
Pulley
4
Rotor
5
Front bearing
6
Rear bearing
7
Front cover
8
Stator coil
9
Rectifier
10
Brush holder
11
Brush
12
Rear cover
13
Terminal B component

Mazda part number (P51X)*

am2zzw00012376

1
Rotor component
2
Stator coil component
3
Pulley
4
Rotor
5
Front bearing
6
Rear bearing
7
Front cover
8
Stator coil
9
Rectifier
10
Brush holder
11
Brush
12
Rear cover
13
Terminal B component

*  :The first four digits of the part number indicated on the generator nameplate
am3zzw00017496

Brush Disassembly Note

Caution
•  Melt the solder quickly, otherwise the diodes (rectifier) and brush holder will be damaged by excessive heat.

Part number other than Mazda (P51X)

am6xuw00006717

Mazda part number (P51X)

am3zzw00017955

1.  Melt the solder and remove the brush from the brush holder.


Brush Assembly Note

Caution
•  Melt the solder quickly, otherwise the diodes (rectifier) and brush holder will be damaged by excessive heat.

Part number other than Mazda (P51X)

am6xuw00006717

Mazda part number (P51X)

am3zzw00017955

1.  Press the brush into the brush holder with it facing in the direction shown in the figure.

Part number other than Mazda (P51X)

am3zzw00017956

Mazda part number (P51X)

am3zzw00017957

2.  Solder the brush to the brush holder.
