IGNITION COIL [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5]

id0118i2000100


Purpose, Function

•  The ignition coil generates high voltage by electromagnetic induction to discharge the spark plug.

Construction

•  The ignition coil is installed to the upper part of the spark plug (direct ignition coil).
•  With the adoption of the direct ignition coil, the ignition system parts have been simplified. As a result, voltage decrease is suppressed and ignition performance for the spark plug is stabilized.

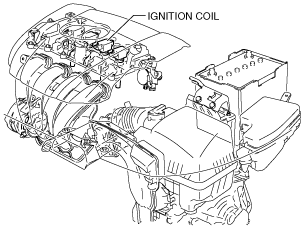

am3uun00003352
•  The ignition coil is built into the igniter and ion sensor. For the ion sensor, refer to CONTROL SYSTEM. (See ION SENSOR [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

Operation

•  Optimum ignition timing is performed according to the driving conditions by integrating the ignition control function into the PCM.

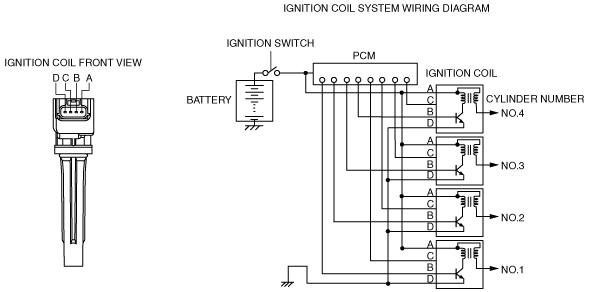

ac5wzn00001482

Fail-safe

DTC

Fail-safe
P0300:00
•  Limits the intake air amount.
P0301:00
P0302:00
P0303:00
P0304:00
•  Stops the fuel injection to the misfiring cylinder.
•  Limits the intake air amount.
