SMART CITY BRAKE SUPPORT (SCBS) OFF SWITCH, SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) OFF INDICATOR LIGHT


id041500885700


Purpose/Function

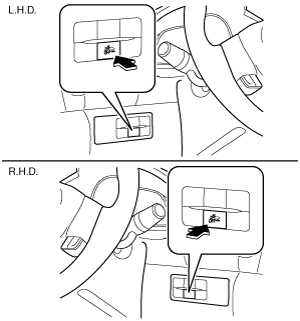

Smart City Brake Support (SCBS) OFF switch

•  For vehicle without center display or multi-information display, the Smart City Brake Support (SCBS) OFF switch, located on the dashboard, allows for optionally enabling/disabling the Smart City Brake Support (SCBS) at driver discretion.
am3zzn00004458

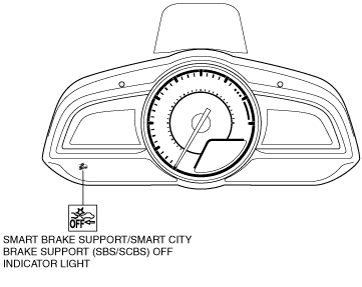

Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF indicator light

•  The Smart Brake Support/Smart City Brake Support (SCBS) OFF indicator light, built into the instrument cluster, informs the driver that Smart Brake Support (SBS) and/or Smart City Brake Support (SCBS) system has been disabled at driver descretion or system malfunction..
am3zzn00004459


Operation

•  The Smart Brake Support/Smart City Brake Support (SBS/SCBS) system illuminates under the following conditions:
―  When turn off the Smart Brake Support (SBS) by setting function of the center display.
―  For vehicle with center display or multi-information display, when turn off the Smart City Brake Support (SCBS) by operation of the steering switch.
―  For vehicle without center display or multi-information display, when turn off the Smart City Brake Support (SCBS) by operation of the Smart City Brake (SCBS) OFF switch.
Note
•  If the DSC OFF switch is operated and the DSC control is disabled, the Smart Brake Support (SBS) and Smart City Brake Support (SCBS) do not operate. At this time, the Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF indicator light illuminates.

Mode

Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF indicator light illumination conditions

Enable the Smart Brake Support (SBS) and/or Smart City Brake Support (SCBS)
Not illuminated
Disable the Smart Brake Support (SBS) and/or Smart City Brake Support (SCBS) OFF
Illuminated


Fail-safe

•  Function not equipped.
