STEERING SHIFT SWITCH REMOVAL/INSTALLATION [FW6A-EL]

id0517h1112500

Warning

•  Handling the driver-side air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)

2.  Remove in the order indicated in the table.

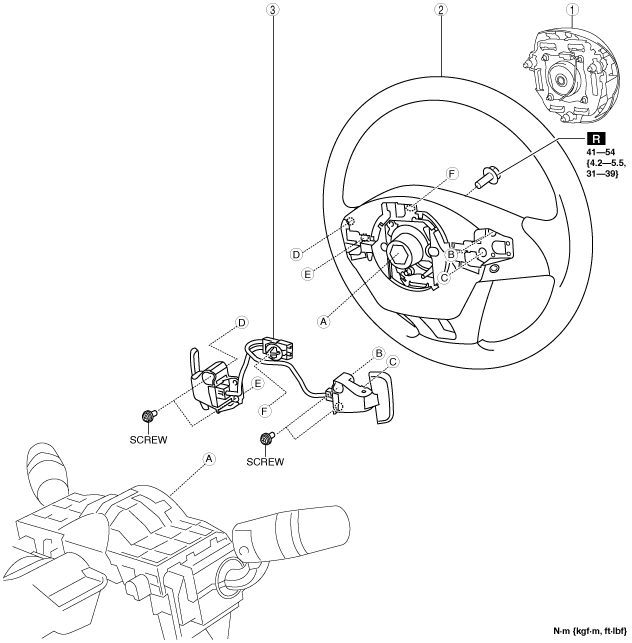

am6zzw00010168

1	Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL.) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION.)
2	Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)
3	Steering shift switch component (See Steering Shift Switch Component Removal Note.)

3.  Install in the reverse order of removal.

Steering Shift Switch Component Removal Note

1.  Disconnect the steering shift switch wiring harness connector.

am6zzw00010804

2.  Detach the tabs of the cover in the area circled by a dashed line and open the cover.

am6zzw00010805

3.  Using a precision flathead screwdriver, release the tab.

am6zzw00009715

4.  Remove the steering shift switch component from the gap in the opening of the cover.

am6zzw00009714

5.  Install in the reverse order of removal.
