ON-BOARD DIAGNOSTIC SYSTEM WIRING DIAGRAM [FULL-AUTO AIR CONDITIONER]

id0702c1700100

With Dual Type Climate Control Unit

am3zzw00015053

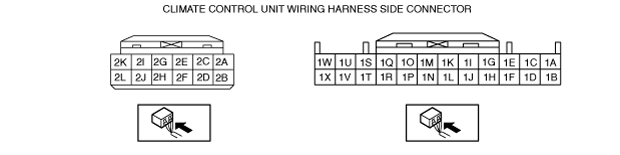

ac5uuw00002141

With Single Type Climate Control Unit

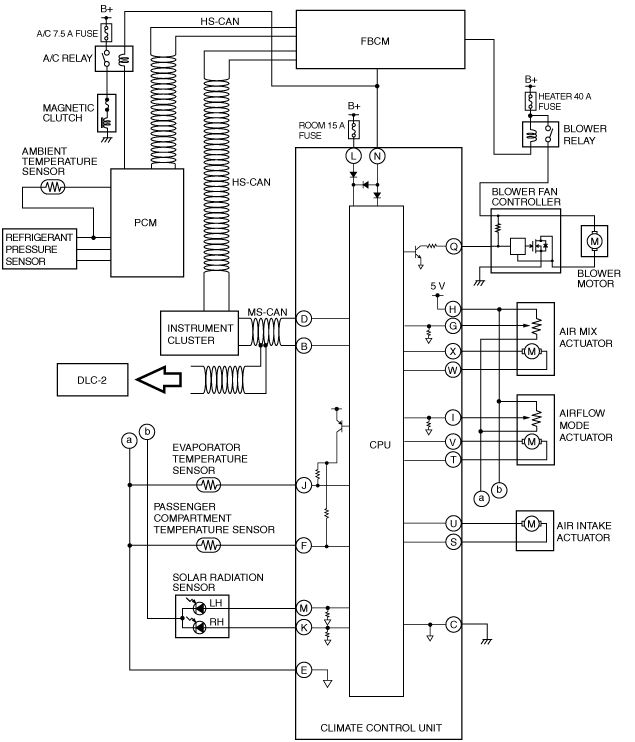

am3uuw00012189

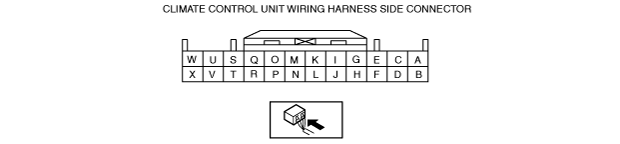

am3uuw00010187
