SYMPTOM TROUBLESHOOTING SYSTEM WIRING DIAGRAM [FULL-AUTO AIR CONDITIONER]


id0703c1700200

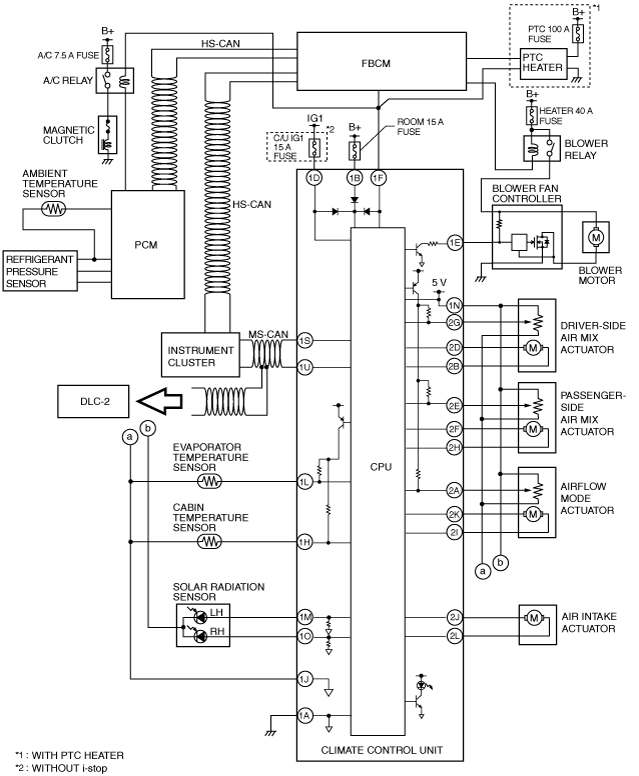

With Dual Type Climate Control Unit

am3zzw00015062

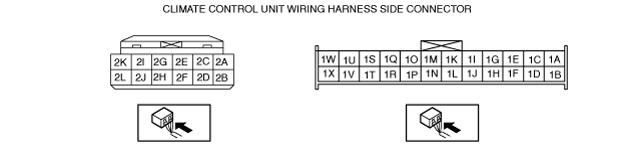

am3uuw00010192

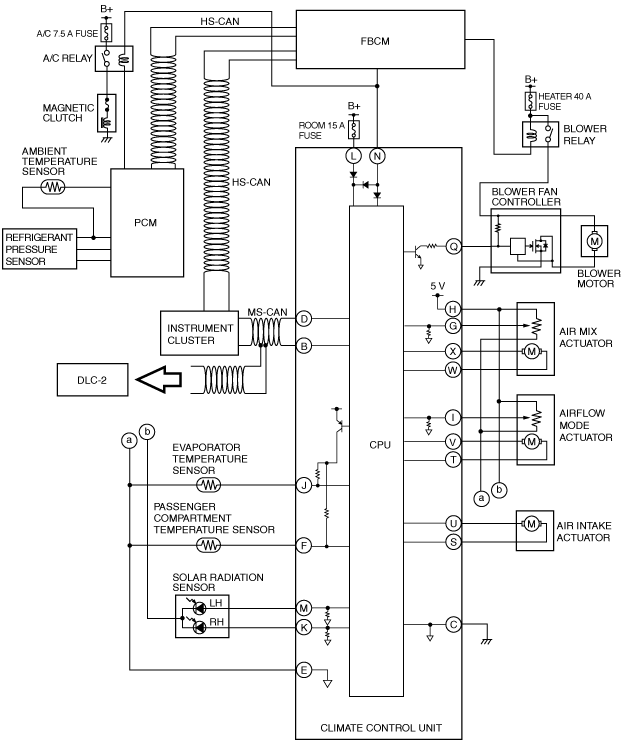

With Single Type Climate Control Unit

am3uuw00010186
am3uuw00010194
