REFRIGERANT SYSTEM

id071100001700


Outline

•  The refrigerant system circulates the refrigerant to cool the evaporator.

Function

•  The refrigerant system has the following functions:

Function

Related parts
1
Connects each part of refrigerant system
Refrigerant line
2
Engages or disengages magnetic clutch to control A/C compressor operation
Magnetic clutch
3
•  Compresses gaseous refrigerant
•  Circulates refrigerant
A/C compressor
4
Cools compressed gaseous refrigerant to change it to liquid refrigerant
Condenser
5
Purifies refrigerant and eliminates moisture
Receiver/drier
6
Atomizes highly pressurized liquid refrigerant
Expansion valve
7
Vaporizes atomized refrigerant
Evaporator

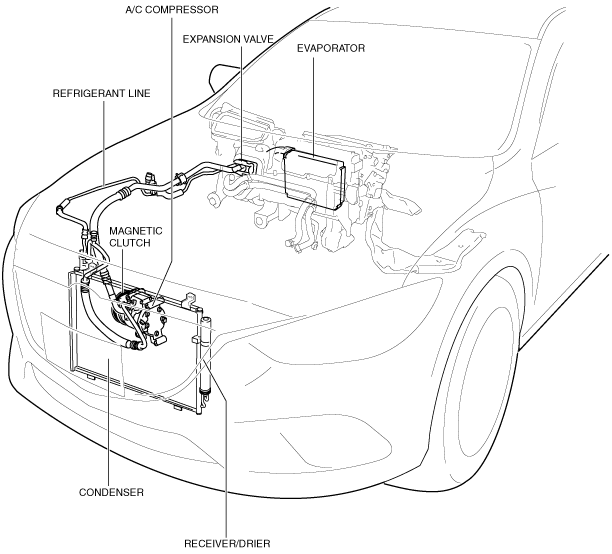

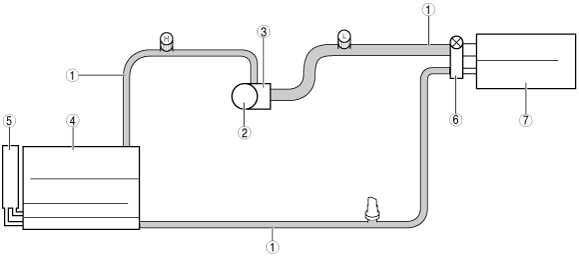

am3uun00002780

Construction

•  The refrigerant system consists of the following parts.
am3uun00002781

Operation

•  The refrigerant system circulates the refrigerant in conjunction with the function of each part as follows:

Operation

Related parts
1
When A/C relay turns on, magnetic clutch engages to operate A/C compressor
Magnetic clutch
2
•  A/C compressor operates to compress gaseous refrigerant
•  Sends compressed gaseous refrigerant to condenser
A/C compressor
3
Gaseous refrigerant is cooled to change it to liquid refrigerant and then sent to receiver/drier
Condenser
4
Liquid refrigerant is purified and moisture is eliminated, and then sent to expansion valve
Receiver/drier
5
Atomizes liquid refrigerant and sends it to evaporator
Expansion valve
6
Atomized refrigerant is vaporized and sent to A/C compressor
Evaporator

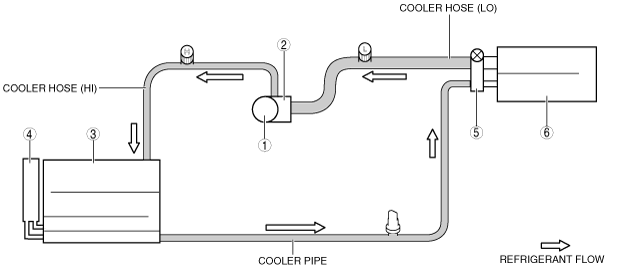

am3uun00002782
