HEATER CORE


id071100002600


Purpose, Function

•  A portion of the engine coolant is taken into the heater core to heat the air passing through the heater core.
ac5uun00000491

Construction

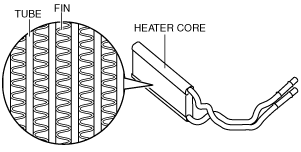

•  The heater core consists of a tube which passes engine coolant, and the heat radiation fin.
ac5uun00000492

Operation

•  For the operation, refer to HEATER SYSTEM. (See HEATER SYSTEM.)

Fail-safe

•  Function not equipped.
