BLOWER UNIT DISASSEMBLY/ASSEMBLY

id071100800600

Caution

• Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.

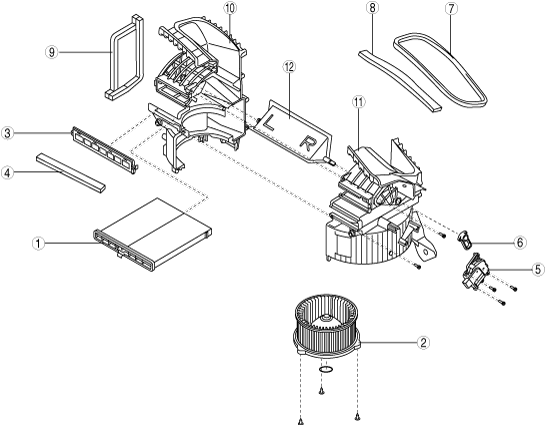

L.H.D.

1. Disassemble in the order indicated in the table.

am3zzw00019886

1

Air filter

2

Blower motor

3

Cover

4

Polyurethane A (SKYACTIV-D 2.2)

5

Air intake actuator

6

Air intake link

7

Polyurethane B

8

Polyurethane C (SKYACTIV-D 2.2)

9

Polyurethane D

10

Blower case A

11

Blower case B

12

Air intake door

2. Assemble in the reverse order of disassembly.

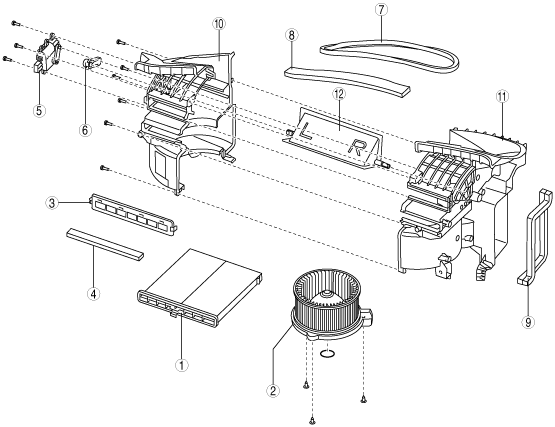

R.H.D.

1. Disassemble in the order indicated in the table.

am3zzw00015101

2. Assemble in the reverse order of disassembly.

1	Air filter
2	Blower motor
3	Cover
4	Polyurethane A (SKYACTIV-D 2.2)
5	Air intake actuator
6	Air intake link
7	Polyurethane B
8	Polyurethane C (SKYACTIV-D 2.2)
9	Polyurethane D
10	Blower case A
11	Blower case B
12	Air intake door
