AIR INTAKE ACTUATOR INSPECTION [MANUAL AIR CONDITIONER]

id0740a2801500


L.H.D.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3.  Remove the following parts (with center display)(with Bluetooth® system):

(1)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(2)  Front scuff plate (passenger-side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(3)  Front side trim (passenger-side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(4)  Tuner and amp unit (TAU) (with center display)(See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)
(5)  Bluetooth® unit (with Bluetooth® system)(See Bluetooth® UNIT REMOVAL/INSTALLATION.)

4.  Remove the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

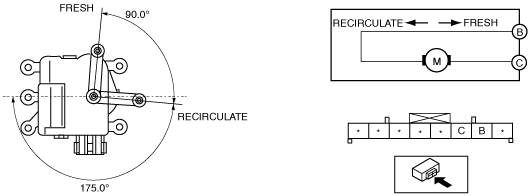

5.  Apply battery positive voltage and connect the ground to the air intake actuator terminals as indicated in the table below and verify the operation condition.

B+ Terminal

Ground Terminal

Operation
B
C
FRESH → RECIRCULATE
C
B
RECIRCULATE → FRESH

am6xuw00006167
•  If not as indicated in the table, replace the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

R.H.D.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(2)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(3)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(4)  Front scuff plate (passenger-side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(5)  Front side trim (passenger-side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(6)  Lower panel (passenger-side) (See LOWER PANEL REMOVAL/INSTALLATION.)

3.  Remove the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)

4.  Apply battery positive voltage and connect the ground to the air intake actuator terminals as indicated in the table below and verify the operation condition.

B+ Terminal

Ground Terminal

Operation
B
C
RECIRCULATE → FRESH
C
B
FRESH → RECIRCULATE

am3zzw00015151
•  If not as indicated in the table, replace the air intake actuator. (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER].)
