PASSENGER-SIDE AIR BAG MODULE

id081000500600

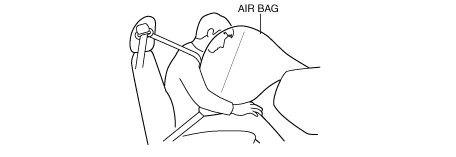

Purpose

• When the passenger-side air bag module receives an impact from a frontal or frontal offset collision, the operation (deployment) of the air bag mediates the impact to the head and face of the front passenger.

Function

• When the passenger-side air bag module receives an impact from a frontal or frontal offset collision, the air bag is operated (deployed) by the operation signal sent from the SAS control module.

am3uun00002872

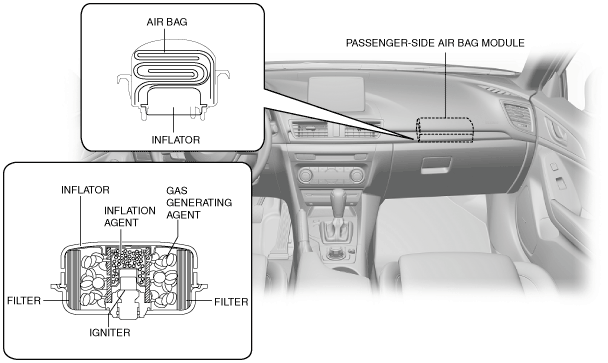

Construction

• The passenger-side air bag module is installed to the instrument panel.

• The passenger-side air bag module consists of the inflator and air bag.

• The inflator consists of the igniter, inflation agent and gas generating agent and filter.

am3uun00002873

Operation

• The passenger-side air bag module operates (deploys) the air bag by activating the internal inflator.

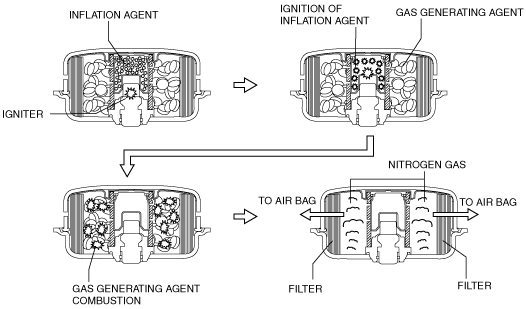

• The inflator operates (deploys) in the following order:

1. When an operation (deployment) signal is received from the SAS control module, the igniter built into the inflator generates heat and ignites the inflation agent.

am3uun00002874

2. The ignition of the inflation agent causes the combustion of a gas generating agent which forms nitrogen gas.

3. The nitrogen gas is cooled at the filter and the filtrate is injected into the air bag.

Fail-safe

• Function not equipped.
