ON-BOARD DIAGNOSTIC WIRING DIAGRAM [FRONT BODY CONTROL MODULE (FBCM)]

id0902p2005900

Rear defroster, blower motor

am3zzn00004138

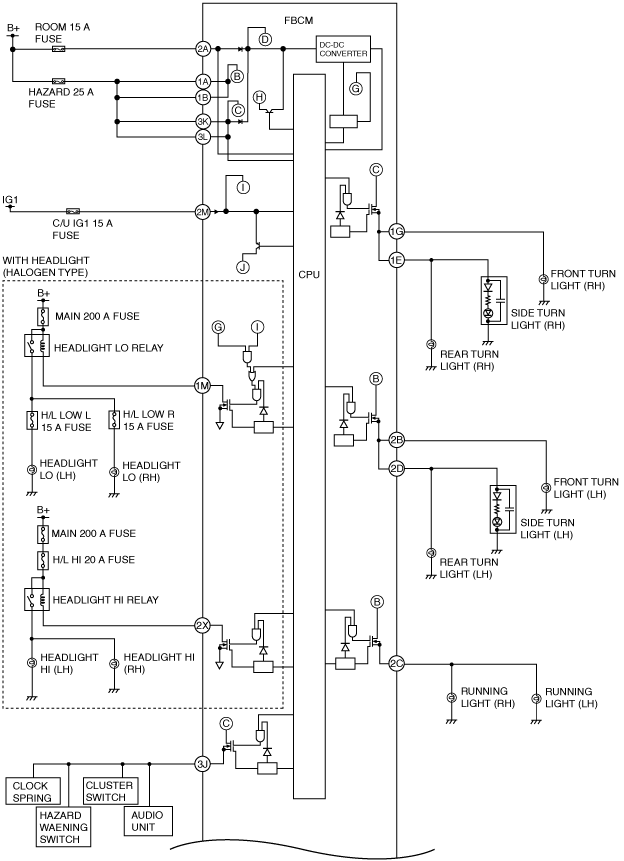

Headlights, turn lights, front fog lights

am3zzn00004139

am3zzn00004140

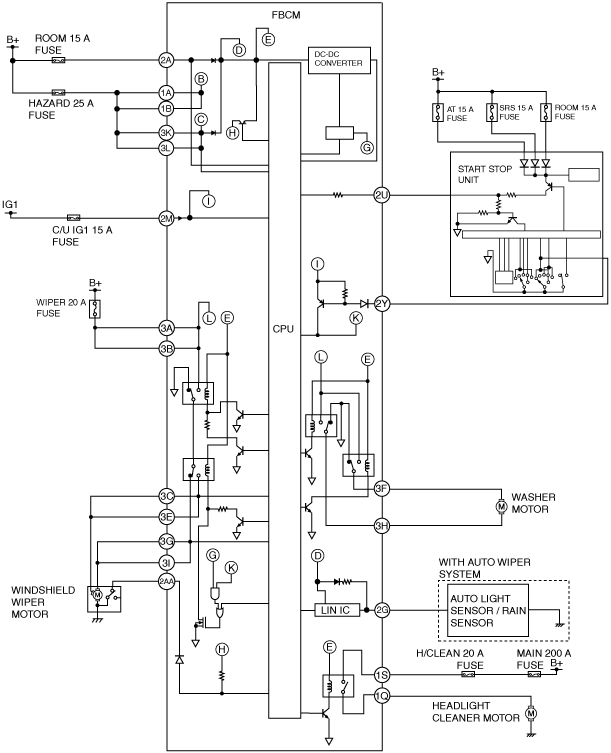

Windshield wipers, front washer

am3zzn00004141

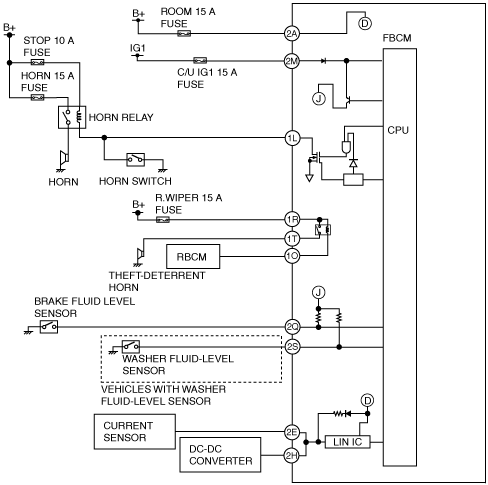

Theft-deterrent system, horn, sensors

am3zzn00004142

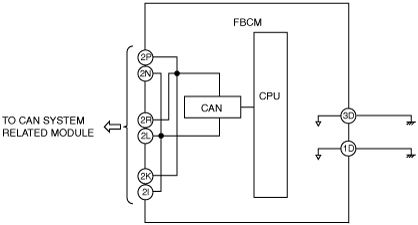

CAN system

am3zzn00004143
