ON-BOARD DIAGNOSTIC WIRING DIAGRAM [REAR BODY CONTROL MODULE (RBCM)]

id0902p4012300

Power window system, Auto dimming mirror

am3zzn00004144

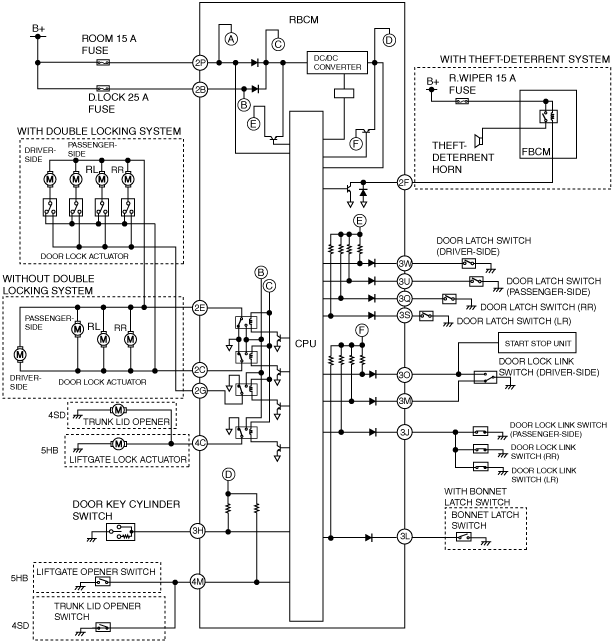

Power door lock system, theft-deterrent system

am3zzn00004145

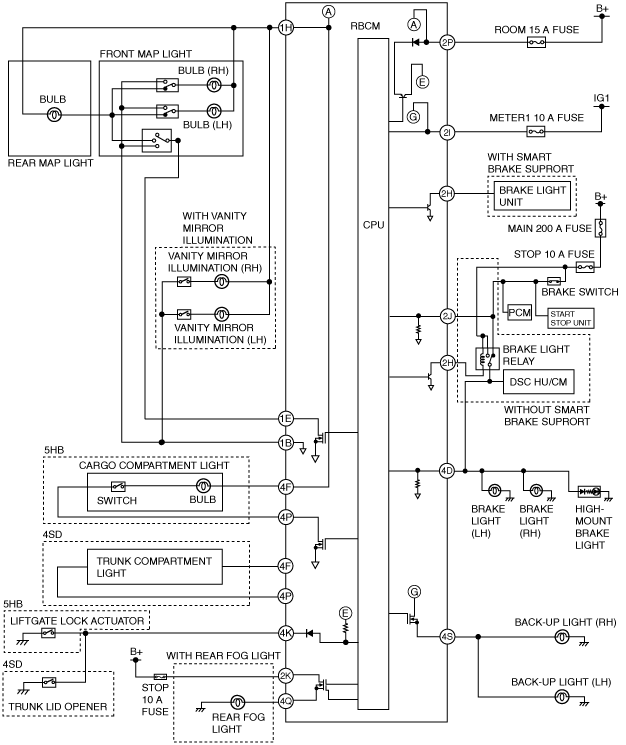

Room lights, brake light, rear fog light system

am3zzn00004146

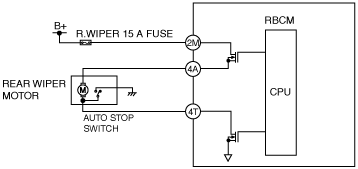

Rear wiper system

am3zzn00004147

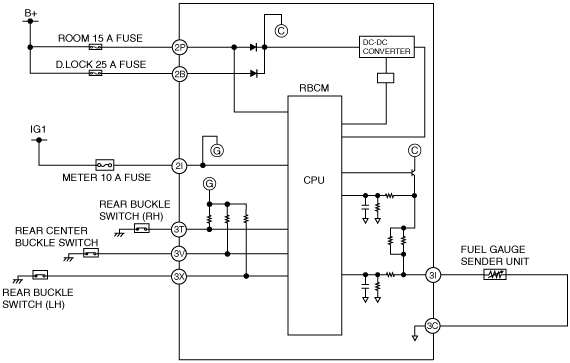

Fuel-level sensor, rear seat belt reminder system

am3zzn00004148

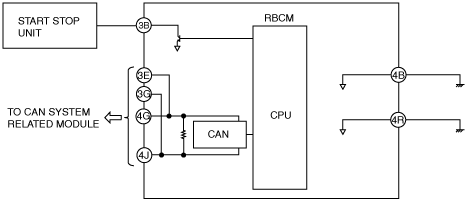

CAN system

am3zzn00004149
