FUEL-FILLER LID ADJUSTMENT


id091000800200

1.  Verify that the gap and height difference between the fuel-filler lid and body.

am6zzw00008799

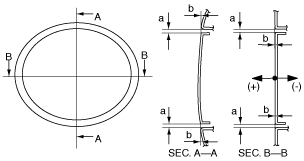

Standard clearance
a: 1.7—3.7 mm {0.07—0.14 in}
b: –1.5—0.5 mm {–0.05—0.01 in}
•  If the measured value exceeds the standard clearance, adjust the fuel-filler lid using the following procedure:

2.  Loosen the bolts and adjust the fuel-filler lid.

3.  Tighten the bolts. (See FUEL-FILLER LID REMOVAL/INSTALLATION.)
