REAR BUMPER DISASSEMBLY/ASSEMBLY
id091000800800
1. Remove the rear fog lights. (with rear fog lights) (See REAR FOG LIGHT REMOVAL/INSTALLATION.)
2. Remove the rear ultrasonic sensor short-cord. (with parking sensor system) (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)
3. Remove the rear ultrasonic sensor. (with parking sensor system) (See REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION.)
4. Disassemble in the order indicated in the table.

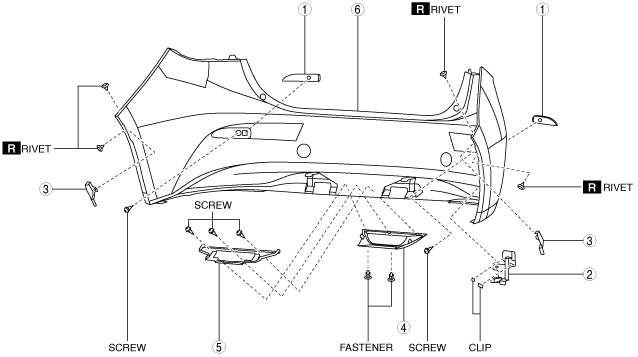

4SD
am3zzw00014607
|
1
|
Rear reflector
|
2
|
Bracket A (with parking sensor system)
|
3
|
Bracket B
|
4
|
Rear fog light bezel (with rear fog light)
|
5
|
Bracket C (with rear fog light)
|
6
|
Rear bumper face
|

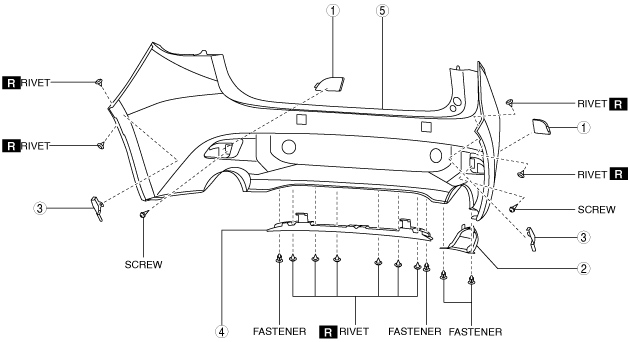

5HB
am3zzw00014608
|
1
|
Rear reflector
|
2
|
Rear bumper guard A
|
3
|
Bracket
|
4
|
Rear bumper guard B
|
5
|
Rear bumper face
|
5. Assemble in the reverse order of disassembly.
