FRONT FENDER STAY REMOVAL/INSTALLATION

id091000803900

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the following parts:

(1)  Set plate (See SET PLATE REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(4)  Washer tank (See WASHER TANK REMOVAL/INSTALLATION.)

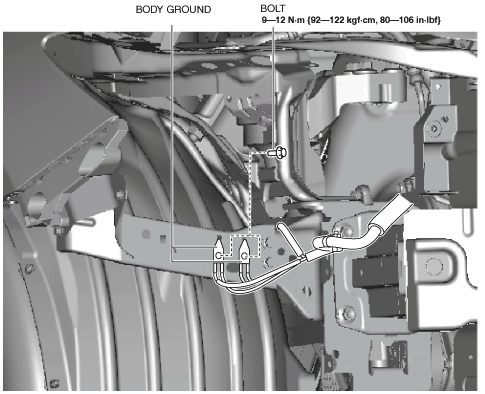

3.  Remove the bolt shown in the figure and then remove body ground.

SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5, MZR 1.6

am3uuw00011636

SKYACTIV-D 1.5, SKYACTIV-D 2.2

am3zzw00014328

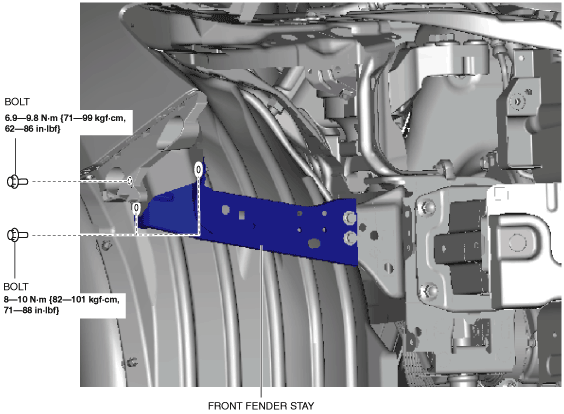

4.  Remove the bolts shown in the figure.

am3uuw00011637

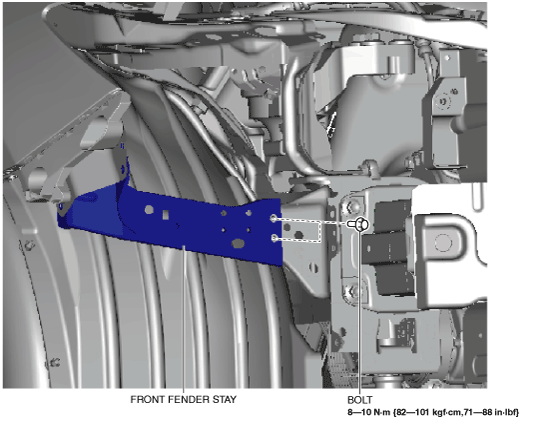

5.  Remove the bolts shown in the figure and then remove the front fender stay.

am3uuw00011638

6.  Install in the reverse order of removal. (See Front Fender Stay Newly Replace Note.)

7.  Adjust the headlight aiming. (See HEADLIGHT AIMING.)

Front Fender Stay Newly Replace Note

Caution

•  If the bolt connection area is painted when the front fender stay is replaced, it could cause a malfunction in the PCM. Before painting the replaced front fender stay, refer to the [Paint Procedure For Replaced Front Fender Stay] in the bodyshop manual.
