FRONT FOG LIGHT BEZEL REMOVAL/INSTALLATION


id091000805000


Front Fog Light Bezel No.1


Front fog light bezel No.1 removal

1.  Slightly bend back the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)

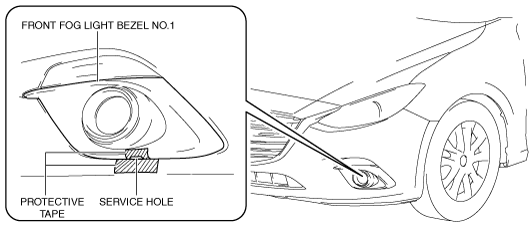

2.  To prevent scratches or damage, apply protective tape to the position shown in the figure.

am3uuw00012017

3.  Insert the remover tool into the front fog light bezel No.1 service hole at the position shown in the figure.

4.  Insert a hand through the position where the front mudguard was bent back, and while pressing area A of front fog light bezel No.1 in the direction of arrow (1) shown in the figure, move the remover tool in the direction of arrow (2) and detach the front fog light bezel No.1 tabs from the front bumper.

am3uuw00012018

5.  Remove front fog light bezel No.1.

Caution
•  For vehicles with front fog light bezel No.2, if front fog light bezel No.2 is pulled strongly, the tab could be damaged. Hold and remove front fog light bezel No.1 from the front bumper.
am3uuw00012019


Front fog light bezel No.1 installation

1.  Press in area B of front fog light bezel No.1 and detach the front fog light bezel No.1 tabs from the front bumper.

am3uuw00012020


Front Fog Light Bezel No.2 (with front fog light bezel No.2)

1.  Remove front fog light bezel No.1. (See Front fog light bezel No.1 removal.)(See Front fog light bezel No.1 installation.)

2.  While pressing the front fog light bezel No.2 tabs in the direction of arrow (1) shown in the figure, press it out in the direction of arrow (2) and detach the front fog light bezel No.2 tabs from front fog light bezel No.1.

am3uuw00012021

3.  Detach all the front fog light bezel No.2 tabs from front fog light bezel No.1 and remove front fog light bezel No.2.

4.  Install in the reverse order of removal.
