BUMPER STIFFENER LOWER REMOVAL/INSTALLATION


id091000888900


Without i-ELOOP

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the following parts:

(1)  Set plate (See SET PLATE REMOVAL/INSTALLATION.)
(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

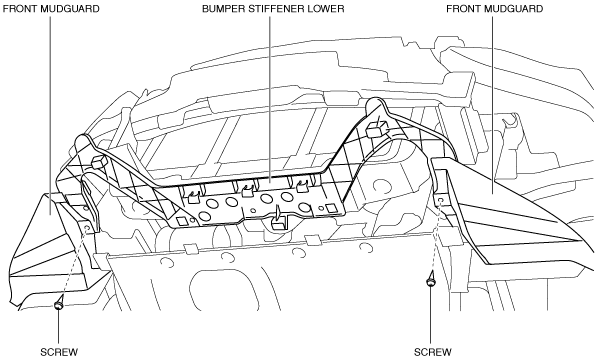

3.  Remove the screws shown in the figure.

am3uuw00012274

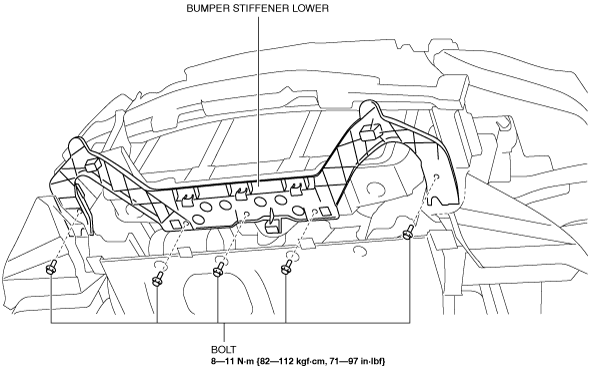

4.  Remove the bolts shown in the figure.

am3uuw00012276

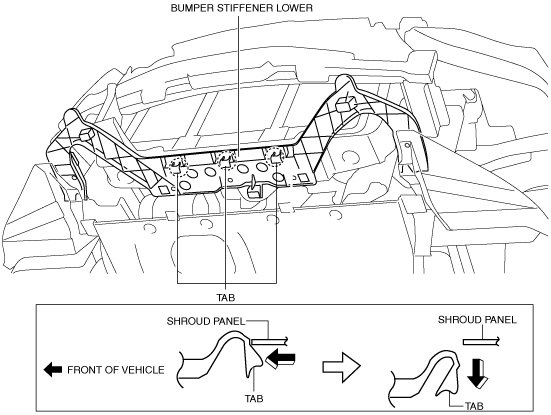

5.  Remove the tabs shown in the figure.

am3uuw00012278

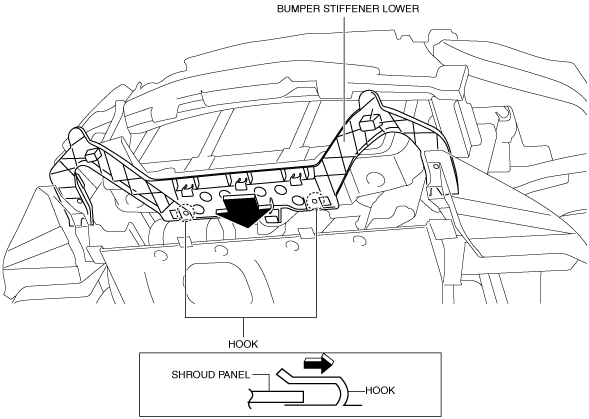

6.  Move the bumper stiffener lower in the direction shown in the figure and remove it toward the vehicle front while detaching the hooks.

am3uuw00012280

7.  Install in the reverse order of removal.


With i-ELOOP

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Set plate (See SET PLATE REMOVAL/INSTALLATION.)
(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

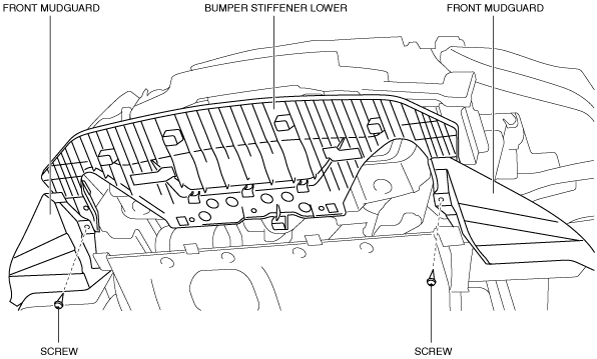

3.  Remove the screws shown in the figure.

am3uuw00012275

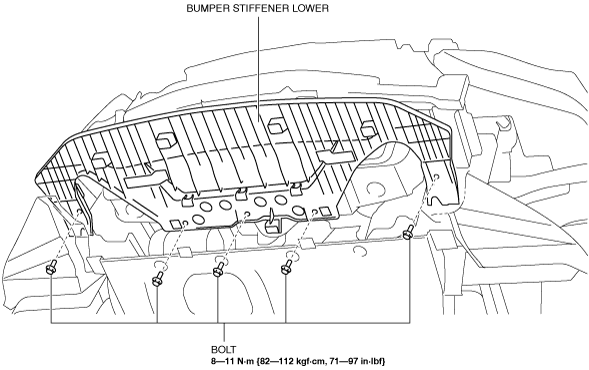

4.  Remove the bolts shown in the figure.

am3uuw00012277

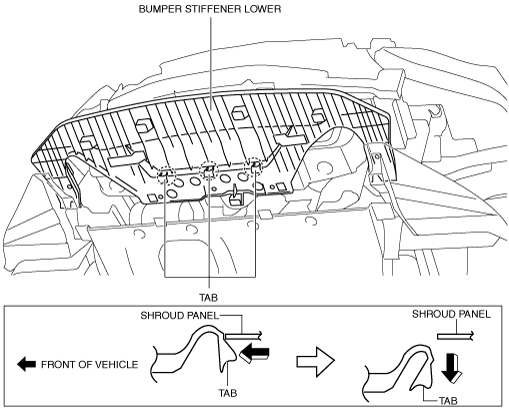

5.  Remove the tabs shown in the figure.

am3uuw00012279

6.  Move the bumper stiffener lower in the direction shown in the figure and remove it toward the vehicle front while detaching the hooks.

am3uuw00012281

7.  Install in the reverse order of removal.
