LIFTGATE REMOVAL/INSTALLATION

id091100521200

Warning

•  Removing the stay damper, liftgate hinge securing bolt, or liftgate without supporting the liftgate may cause the liftgate to fall off and injure you. When removing the stay damper, liftgate hinge, or liftgate, always use two persons to perform the work.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connectors and rear washer hose shown in the figure.

am3uuw00011693

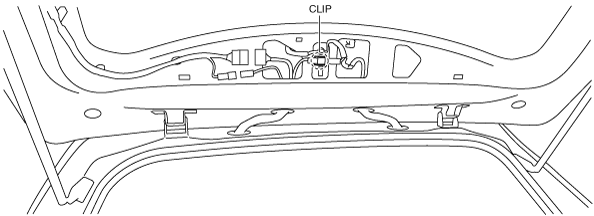

4.  Remove the wiring harness clip shown in the figure.

am3uuw00011694

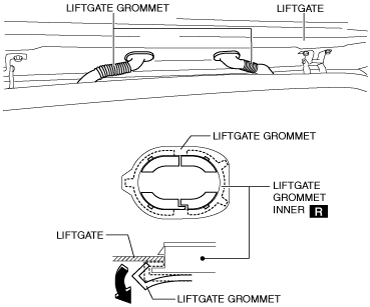

5.  Partially peel the liftgate grommet in the direction of arrow shown in the figure, and remove the liftgate grommet from the liftgate grommet inner.

am3uuw00011695

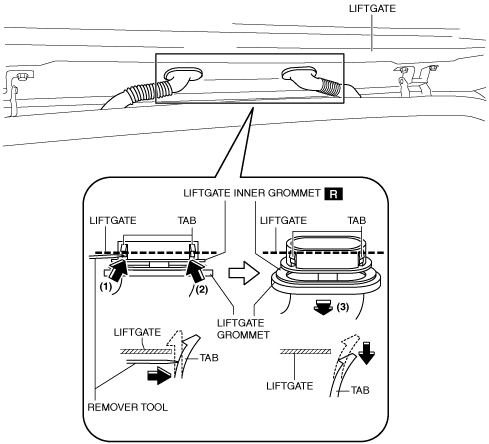

6.  Using a remover tool, press the liftgate grommet inner tabs in the directions of arrows (1) and (2) shown in the figure and remove the liftgate grommet inner from the liftgate in the direction of arrow (3).

am3uuw00011696

7.  Remove the rear washer hose and wiring harness from the liftgate and set them aside.

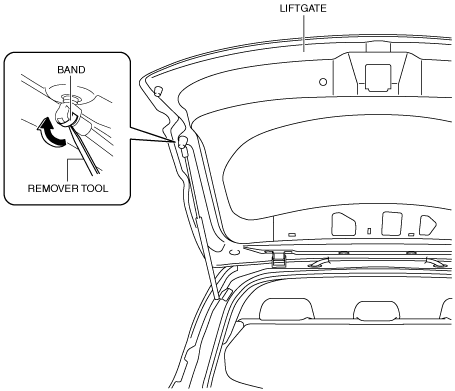

8.  Using a remover tool, remove the stay damper securing band in the direction of arrow shown in the figure.

am3uuw00011697

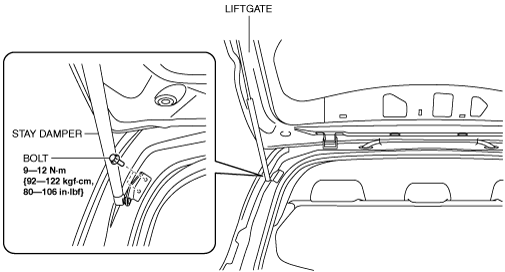

9.  Remove the bolts shown in the figure and remove the stay damper.

am3uuw00011698

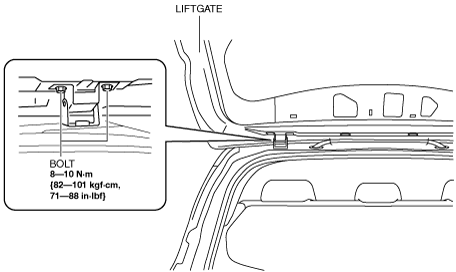

10.  Remove the bolts shown in the figure and remove the liftgate.

am3uuw00011699

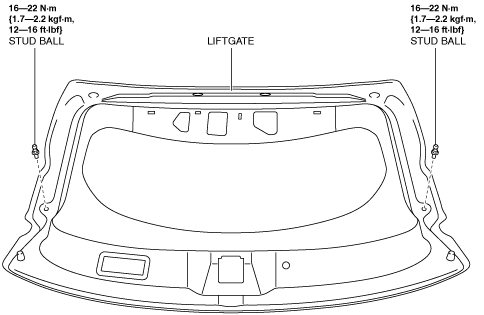

11.  Remove the stud balls.

am3uuw00011700

12.  Install in the reverse order of removal. (See Liftgate Grommet Installation Note.)

13.  Adjust the liftgate. (See LIFTGATE ADJUSTMENT.)

Liftgate Grommet Installation Note

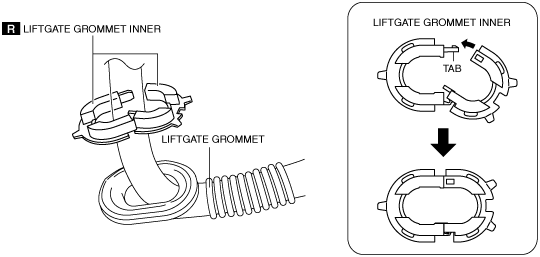

1.  Engage a new liftgate grommet inner.

am3uuw00011701

Caution

•  Install the liftgate grommet inner so that there is no gap between the liftgate grommet and the liftgate grommet inner. Otherwise, it may cause water leakage.

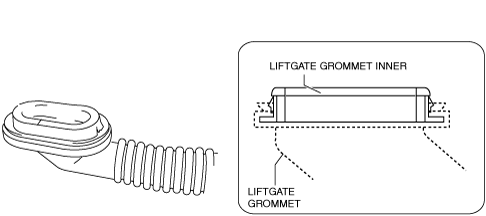

2.  Install the liftgate grommet inner to the liftgate grommet.

am3uuw00011702

Caution

•  After installing the liftgate, shake the liftgate grommet inner to verify that the tabs are securely engaged. If there is gap between the liftgate grommet and the liftgate, it may cause water leakage.

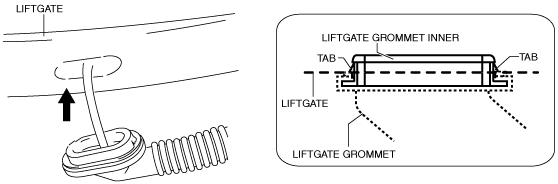

3.  Press the liftgate grommet inner into the liftgate side as shown in the figure and engage the tabs of the liftgate grommet inner with the liftgate side.

am3uuw00011703
