POWER OUTER MIRROR SWITCH INSPECTION


id091200003400


With Retract/return Function

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION.)

3.  Verify that the continuity between the power outer mirror switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION.)

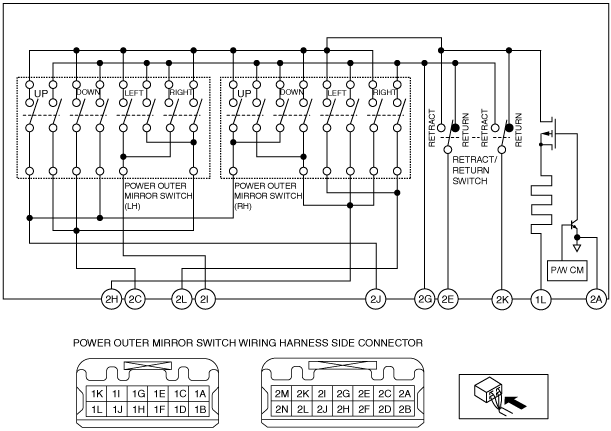

am3zzw00014310

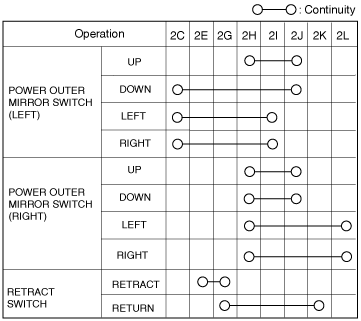

am3uuw00011004

4.  Connect the power outer mirror connector.

5.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

6.  Measure the voltage at each terminal.

•  If the voltage is not as specified in the terminal voltage table, inspect the parts under Inspection item (s) and related wiring harnesses.
―  If the system does not work normally even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item (s)

2C
Right/down signal
Power outer mirror (LH)
While outer mirror glass (LH) is moving downward or towards right
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2E
Retract signal
Power outer mirror (LH/RH)
While power outer mirror (LH/RH) is retracting
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2G
GND
Body ground
Under any condition
1.0 or less
•  Related wiring harness
2H
Right/down signal
Power outer mirror (RH)
While outer mirror glass (RH) is moving downward or towards right
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2I
Left signal
Power outer mirror (LH)
While outer mirror glass (LH) is moving towards left
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2J
Up signal
Power outer mirror (LH/RH)
While outer mirror glass (LH/RH) is moving upward
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2K
Return signal
Power outer mirror (LH/RH)
While power outer mirror (LH/RH) is returning
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less
2L
Left signal
Power outer mirror (RH)
While outer mirror glass (RH) is moving towards left
B+
•  Related wiring harness
•  Power outer mirror
Other
1.0 or less


Without Retract/return Function

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION.)

3.  Verify that the continuity between the power outer mirror switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION.)

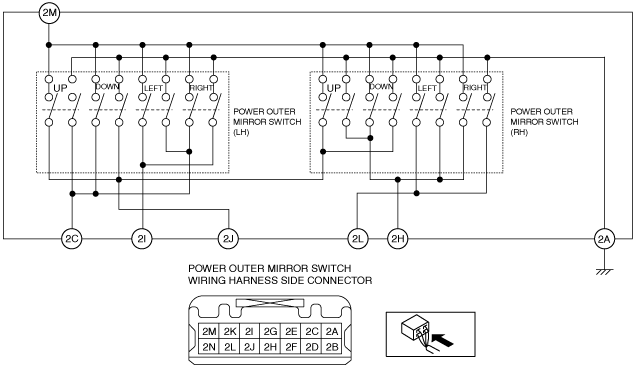

am3zzw00014311
am3zzw00014312
