REAR WINDOW DEFROSTER/OUTER MIRROR HEATER


id091200012100


Outline

•  Fogging is cleared from the rear window and outer mirror glass by heating of the filament.

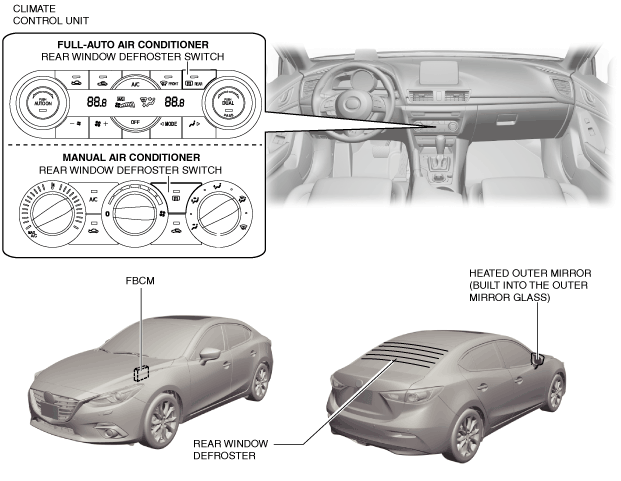

Structural View

am3zzn00005249

System Wiring Diagram

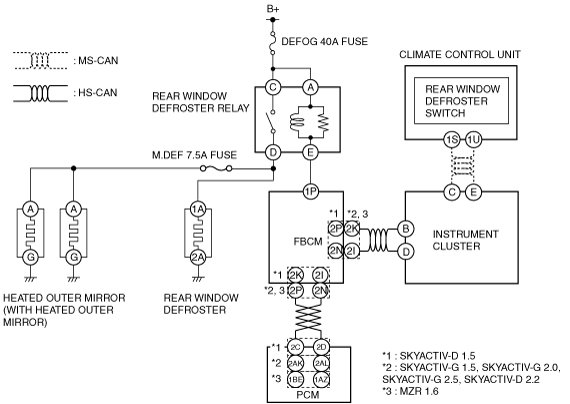

Full-auto air conditioner

am3zzn00005250

Manual air conditioner

am3zzn00005266

Function

•  Fogging on the rear window glass is removed by heating the rear window glass using the rear window defroster filaments to vaporize moisture on the window.

Personalization features

•  The rear window defroster operation time setting can be changed (initial setting is 15 minutes). Refer to the [GLASS/WINDOWS/MIRRORS PERSONALIZATION] for details on personalization features. (With GLASS/WINDOWS/MIRRORS PERSONALIZATION) (See GLASS/WINDOWS/MIRRORS PERSONALIZATION.)


Construction


Rear window defroster

•  The rear window defroster is inside the rear window glass.
am3zzn00004576


Heated outer mirror

•  The heated outer mirror filament is integrated in the outer mirror glass.
ac5wzn00000294


Operation

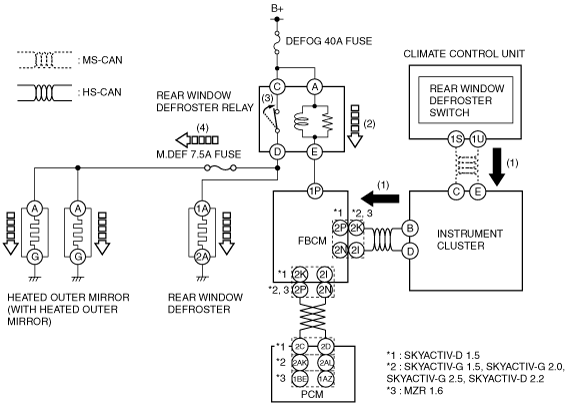

Full-auto air conditioner

1.  When the rear window defroster switch on the climate control unit is turned on, an ON/OFF control request signal is sent to the front body control module (FBCM) through the instrument cluster as a CAN signal.

2.  When the front body control module (FBCM) receives the ON/OFF control request signal, it supplies the battery voltage to the rear window defroster relay.

3.  When the battery voltage is supplied to the rear window defroster relay, a switch inside the rear window defroster relay is turned on.

4.  When the switch inside the rear window defroster relay is turned on, the battery voltage is supplied to the rear window defroster/heated outer mirrors to operate them.

am3zzn00005251

Note
•  When approx. 15 min. has elapsed after the rear window defroster switch was turned on, the timer control of the front body control module (FBCM) turns off the rear window defroster relay automatically to turn off the rear window defroster/heated outer mirror.
•  When the rear window defroster switch is pressed while the rear window defroster/heated outer mirrors are operating, they stop operating.
Rear window defroster operation time is set to Continuous
1.  When the rear window defroster switch on the climate control unit is turned on, an ON/OFF control request signal is sent to the front body control module (FBCM) through the instrument cluster as a CAN signal.
2.  When the front body control module (FBCM) receives the ON/OFF control request signal, it supplies the battery voltage to the rear window defroster relay.
3.  When the battery voltage is supplied to the rear window defroster relay, a switch inside the rear window defroster relay is turned on.
4.  When the switch inside the rear window defroster relay is turned on, the battery voltage is supplied to the rear window defroster/heated outer mirrors to operate them.
5.  When approx. 15 min have elapsed since the front body control module (FBCM) received the rear window defroster operation request signal, it receives an ambient temperature signal from the PCM, and if the PCM detects an ambient temperature of 0 °C or less, the front body control module (FBCM) continues supplying power to the rear window defroster relay. (Ambient temperature of 0 °C or less detected)
6.  When approx. 15 min have elapsed since the front body control module (FBCM) received the rear window defroster operation request signal, it receives an ambient temperature signal from the PCM, if the PCM detects an ambient temperature of 1 °C or more, the front body control module (FBCM) stops supplying power to the rear window defroster and the rear window defroster operation is stopped. (Ambient temperature of 1 °C or more detected)
am3zzn00005264

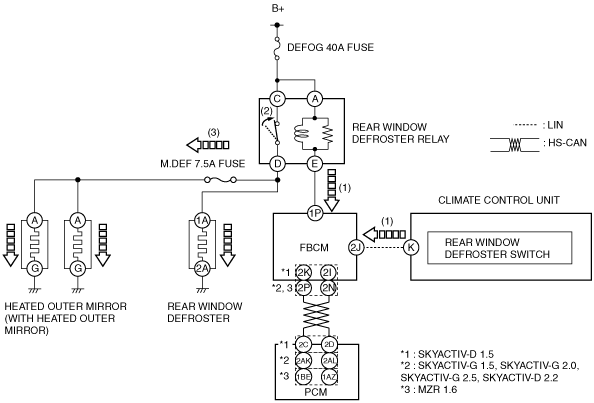

Manual air conditioner

1.  When the rear window defroster switch on the climate control unit is turned on, a signal is sent from the climate control unit to the front body control module (FBCM) and the battery voltage is supplied to the rear window defroster relay.

2.  When the battery voltage is supplied to the rear window defroster relay, a switch inside the rear window defroster relay is turned on.

3.  When the switch inside the rear window defroster relay is turned on, the battery voltage is supplied to the rear window defroster/heated outer mirrors to operate them.

am3zzn00005267

Note
•  When approx. 15 min. has elapsed after the rear window defroster switch was turned on, the timer control of the front body control module (FBCM) turns off the rear window defroster relay automatically to turn off the rear window defroster/heated outer mirror.
•  When the rear window defroster switch is pressed while the rear window defroster/heated outer mirrors are operating, they stop operating.
Rear window defroster operation time is set to Continuous
1.  When the rear window defroster switch on the climate control unit is turned on, a signal is sent from the climate control unit to the front body control module (FBCM) and the battery voltage is supplied to the rear window defroster relay.
2.  When the battery voltage is supplied to the rear window defroster relay, a switch inside the rear window defroster relay is turned on.
3.  When the switch inside the rear window defroster relay is turned on, the battery voltage is supplied to the rear window defroster/heated outer mirrors to operate them.
4.  When approx. 15 min have elapsed since the front body control module (FBCM) received the rear window defroster operation request signal, it receives an ambient temperature signal from the PCM, and if the PCM detects an ambient temperature of 0 °C or less, the front body control module (FBCM) continues supplying power to the rear window defroster relay. (Ambient temperature of 0 °C or less detected)
5.  When approx. 15 min have elapsed since the front body control module (FBCM) received the rear window defroster operation request signal, it receives an ambient temperature signal from the PCM, if the PCM detects an ambient temperature of 1 °C or more, the front body control module (FBCM) stops supplying power to the rear window defroster and the rear window defroster operation is stopped. (Ambient temperature of 1 °C or more detected)
am3zzn00005265


Fail-safe

•  Function not equipped.
