REAR SEAT
id091300101100
Purpose, Function
• The following 2 types of rear seat backs have been adopted.
-
― 6:4 split type
― Single type

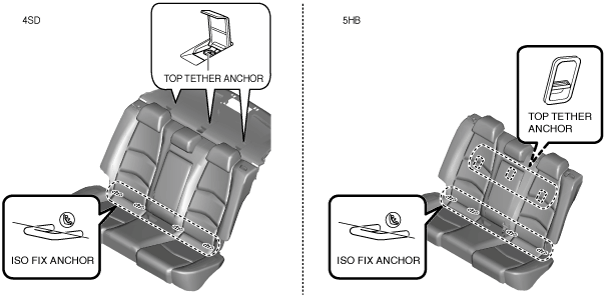

• A top tether anchor and ISO FIX anchor have been adopted to enable securing of child-restraint seats on the rear seat.
• A prevention of trunk compartment cargo from forward intrusion function has been adopted for the rear seat to protect passengers during a collision or emergency braking.
Construction, Operation
• The child-restraint seat anchors include a top tether anchor and ISO FIX anchor to secure the child-restrain seats and prevent them from deviating or falling off the rear seat.
• During a collision, a moving load is stopped by the reinforced rear seat back frame and each support point to prevent the rear seat back from collapsing forward and the luggage intruding into the cabin.
Fail-safe
• Function not equipped.
