POWER SEAT SYSTEM


id091300262000


Outline

•  6-WAY power seats have been adopted on the driver's seat.
•  The power seat system:
―  Drives the electric motor
―  Operates the front seats safely
―  Changes the driving posture to suit the occupant by operating the power seat switch

Function

•  The 6-WAY power seats are equipped with the following functions:
―  Slide mechanism
―  Recliner mechanism
―  Lift mechanism

Slide mechanism

•  The sliding function adjusts the front and back positions of the front seats.
am3uun00003572


Recliner mechanism

•  The recliner function adjusts the angle of the front seat backs.
am3uun00003573


Lift mechanism

•  The lift function adjusts the height of the front seats.
am3uun00003574

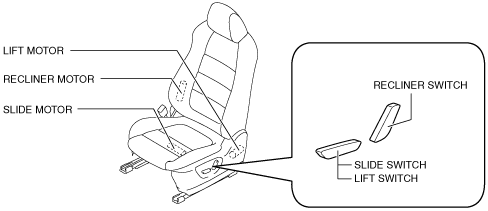

Structural View

am3uun00002747

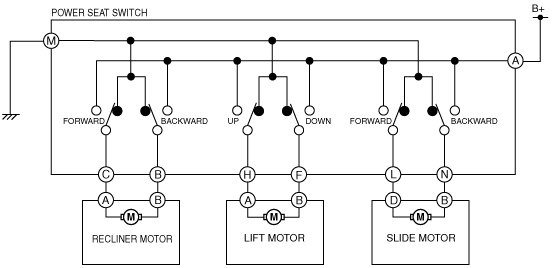

System Diagram

am3zzn00004266

Operation


Recliner operation

1.  When the recliner switch is operated forward or backward (1), current from the battery flows to the recliner motor (2).

2.  When the current flows to the recliner motor, the motor operates to tilt the front seat back forward or backward.

am3zzn00004267

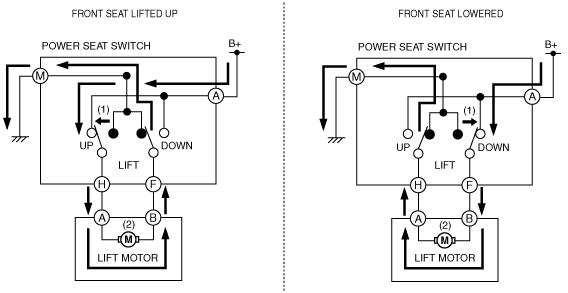

Lift operation

1.  When the lift switch is operated upward or downward (1), current from the battery flows to the lift motor (2).

2.  When the current flows to the lift motor, the motor operates to lift up or lower the front seat.

am3zzn00004268

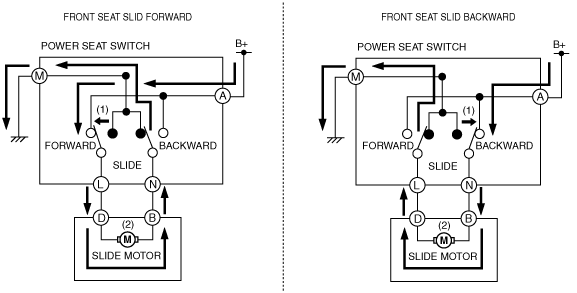

Slide operation

1.  When the slide switch is operated forward or backward (1), current from the battery flows to the slide motor (2).

2.  When the current flows to the slide motor, the motor operates to slide the front seat forward or backward.

am3zzn00004269


Fail-safe

•  Function not equipped.
