SEATS LOCATION INDEX

id091300800100

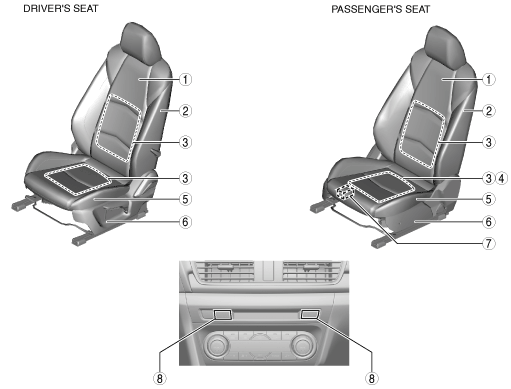

Front Seat

am3zzw00016365

1	Front seat (See FRONT SEAT REMOVAL/INSTALLATION.) (See LIFT MOTOR INSPECTION.) (See SLIDE MOTOR INSPECTION.) (See RECLINER MOTOR INSPECTION.)
2	Front seat back (See FRONT SEAT BACK COMPONENT REMOVAL/INSTALLATION.) (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION.) (See FRONT SEAT BACK FRAME REMOVAL/INSTALLATION.)
3	Occupancy sensor (See OCCUPANCY SENSOR INSPECTION.)
4	Seat warmer unit (See SEAT WARMER UNIT INSPECTION.)
5	Front seat cushion (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION.) (See FRONT SEAT CUSHION FRAME/ADJUSTER UNIT REMOVAL/INSTALLATION.)
6	Front seat side cover (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION.) (See POWER SEAT SWITCH REMOVAL/INSTALLATION.) (See POWER SEAT SWITCH INSPECTION.)
7	Seat warmer control unit (See SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION.)
8	Seat warmer switch (See SEAT WARMER SWITCH REMOVAL/INSTALLATION.)

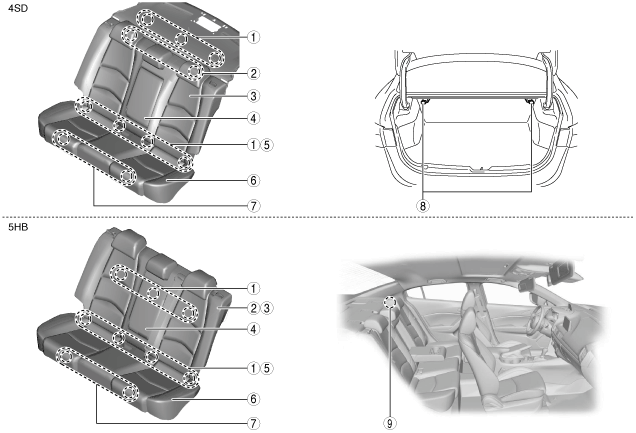

Rear Seat

am3uuw00013115

1	Child-restraint seat anchor (See CHILD-RESTRAINT SEAT ANCHOR REMOVAL/INSTALLATION.)
2	Rear seat back latch (See REAR SEAT BACK LATCH REMOVAL/INSTALLATION.)
3	Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION.) (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.) (See REAR SEAT BACK TRIM REMOVAL/INSTALLATION.)
4	Rear seat center armrest (See REAR SEAT CENTER ARMREST REMOVAL/INSTALLATION.) (See REAR SEAT CENTER ARMREST TRIM REMOVAL/INSTALLATION.)
5	Rear seat hinge (See REAR SEAT HINGE REMOVAL/INSTALLATION.)
6	Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION.) (See REAR SEAT CUSHION TRIM REMOVAL/INSTALLATION.)
7	Rear seat cushion lock (See REAR SEAT CUSHION LOCK REMOVAL/INSTALLATION.)
8	Remote handle lever (See REMOTE HANDLE LEVER REMOVAL/INSTALLATION.)
9	Rear seat back striker (See REAR SEAT BACK STRIKER REMOVAL/INSTALLATION.)
