SECURITY AND LOCKS

id091400108100

Outline

• Power door lock system adopted

• Liftgate opener system adopted

• Trunk lid opener system adopted

• Keyless entry system adopted

• Advanced keyless entry system adopted

• Push button start system adopted

• Immobilizer system adopted

• Theft-deterrent system adopted

Structural View

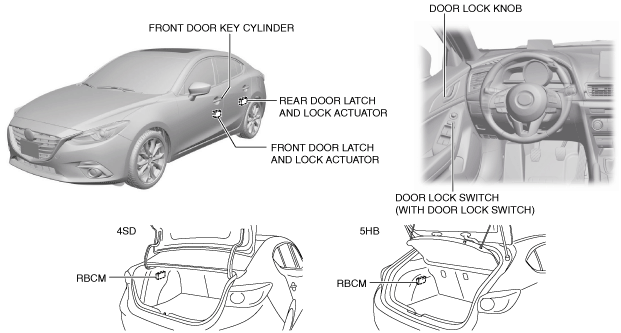

Power door lock system

am3zzn00004644

Trunk lid opener system

am3zzn00004645

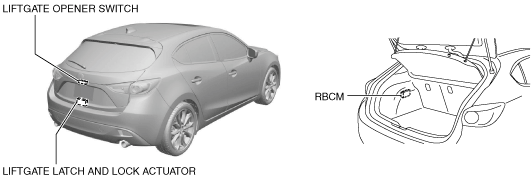

Liftgate opener system

am3uun00002557

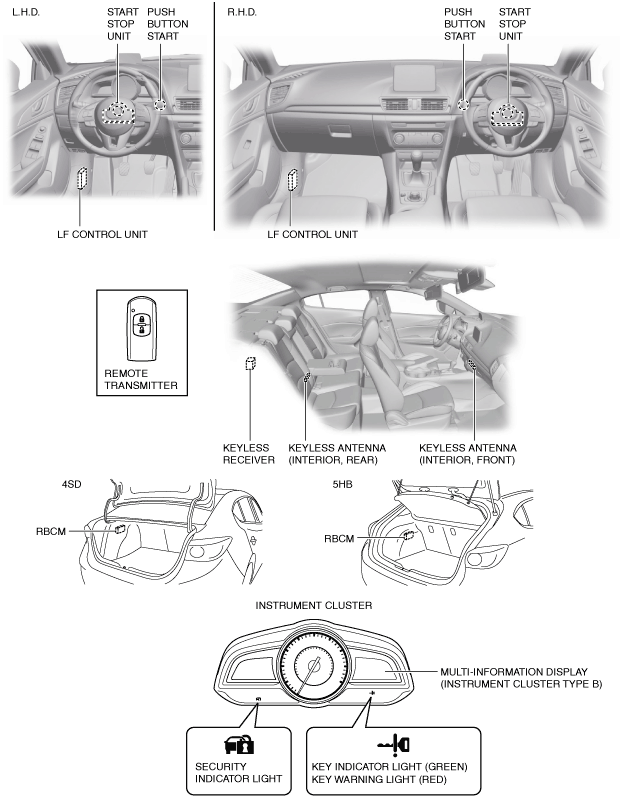

Advanced keyless entry system / Push button start system / Immobilizer system

am3zzn00004368

am3zzn00003718

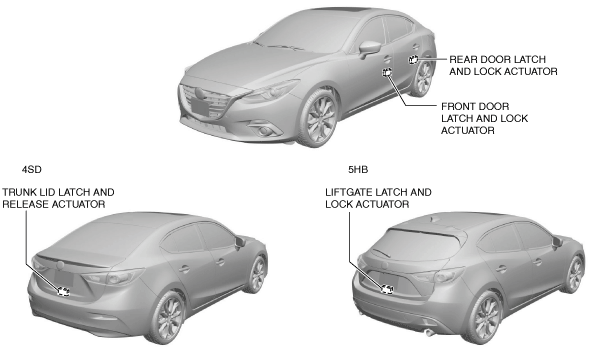

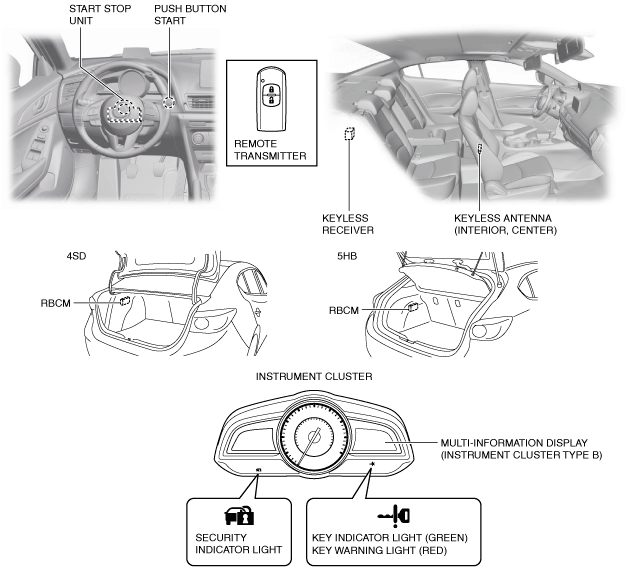

Keyless entry system / Push button start system / Immobilizer system

am3zzn00004369

am3zzn00003719

Theft-deterrent System

With intruder sensor

am3zzn00003720

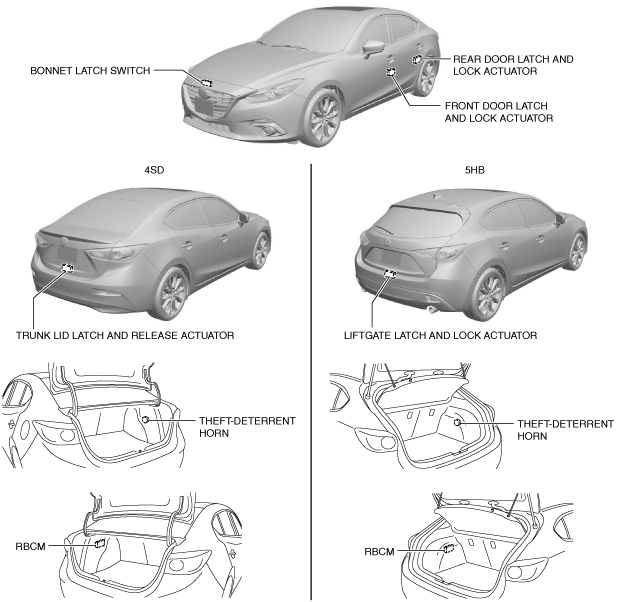

Without intruder sensor

am3zzn00003721
