FRONT DRAIN HOSE REMOVAL/INSTALLATION

id091500443800

4SD

Driver-side

L.H.D

1.  Set the wheel blocks for both the front and rear wheels.

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

3.  Shift the selector lever from the P position to the D position (ATX).

4.  Remove the sunroof seaming welt.

5.  Remove the following parts:

1.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

2.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

3.  Front map light (with sunglasses holder) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

4.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

5.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

6.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

7.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

8.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

9.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

10.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

6.  Set the tire house trim aside. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

7.  Remove the following parts:

1.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

2.  Upper panel (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)

3.  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

4.  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].)

5.  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

6.  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

7.  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

8.  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

9.  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

10.  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

11.  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

12.  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

13.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

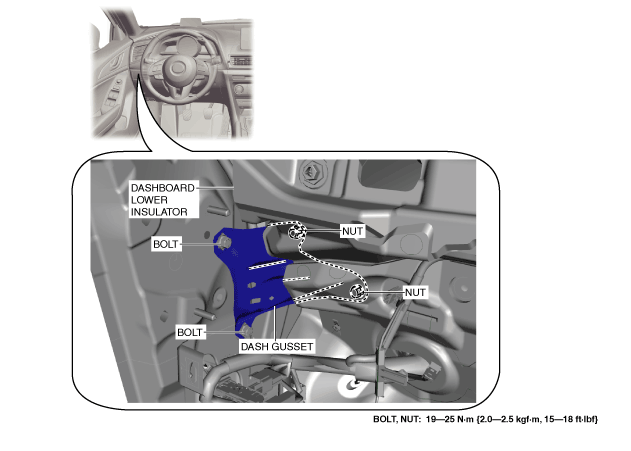

8.  Remove bolts.

am3zzw00017342

9.  Set the dashboard lower insulator aside.

10.  Remove nuts.

11.  Remove the dash gusset.

12.  Disconnect the front drain hose from the sunroof frame.

am3zzw00014616

13.  Pull the front drain hose in the direction of the arrow in the order of (1), (2) and remove it while detaching hook A.

am3zzw00013949

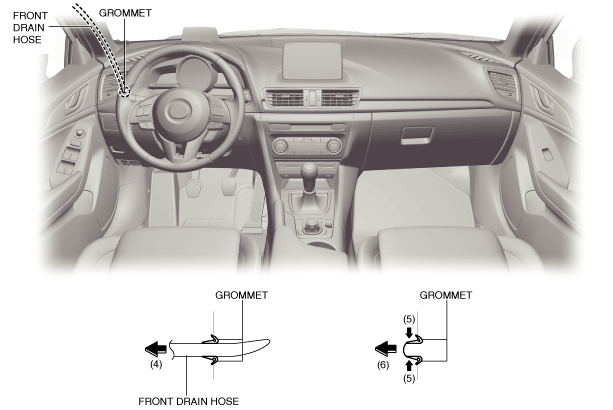

14.  Remove the front drain hose in the direction of the arrow (3) from hooks B.

15.  Remove the front drain hose in the direction of the arrow (4) from grommet.

am3zzw00013950

16.  Remove the grommet in the direction of the arrow (5), (6) shown in the figure.

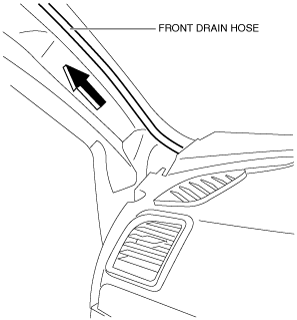

17.  Pull the front drain hose out from the A-pillar side.

am3uuw00011086

18.  Install in the reverse order of removal.

R.H.D

1.  Set the wheel blocks for both the front and rear wheels.

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

3.  Shift the selector lever from the P position to the D position (ATX).

4.  Remove the sunroof seaming welt.

5.  Remove the following parts:

1.  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

2.  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

3.  Front map light (with sunglasses holder) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

4.  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

5.  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

6.  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

7.  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

8.  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

9.  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

10.  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

6.  Set the tire house trim aside. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

7.  Remove the following parts:

1.  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

2.  Upper panel (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)

3.  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

4.  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].)

5.  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

6.  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

7.  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

8.  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

9.  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

10.  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

11.  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

12.  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

13.  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

8.  Remove the tuner and amp unit (TAU) (with TAU). (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

9.  Remove the TAU bracket (with TAU). (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION.)

10.  Remove the Bluetooth^® unit component. (with Bluetooth^® system) (See Bluetooth® UNIT REMOVAL/INSTALLATION.)

11.  Remove bolts.

am3zzw00014617

12.  Set the dashboard lower insulator aside.

13.  Remove nuts.

14.  Remove the dash gusset.

15.  Disconnect the front drain hose from the sunroof frame.

am3zzw00014618

16.  Pull the front drain hose in the direction of the arrow in the order of (1), (2) and remove it while detaching hook A.

am3zzw00014619

17.  Remove the front drain hose in the direction of the arrow (3) from hooks B.

18.  Remove the front drain hose in the direction of the arrow (4) from grommet.

am3zzw00014620

19.  Remove the grommet in the direction of the arrow (5), (6) shown in the figure.

20.  Pull the front drain hose out from the A-pillar side.

am3zzw00014621

21.  Install in the reverse order of removal.

Passenger-side

1.  Set the wheel blocks for both the front and rear wheels.

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

3.  Shift the selector lever from the P position to the D position (ATX).

4.  Remove the sunroof seaming welt.

5.  Remove the following parts:

(1)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(3)  Front map light (with sunglasses holder) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(4)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(5)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(8)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(9)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(10)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

6.  Set the tire house trim aside. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

7.  Remove the following parts:

(1)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Upper panel (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)

(3)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(4)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].)

(5)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(6)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(7)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(8)  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

(9)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(10)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(11)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(12)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(13)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

8.  Disconnect the front drain hose from the sunroof frame.

am3zzw00017343

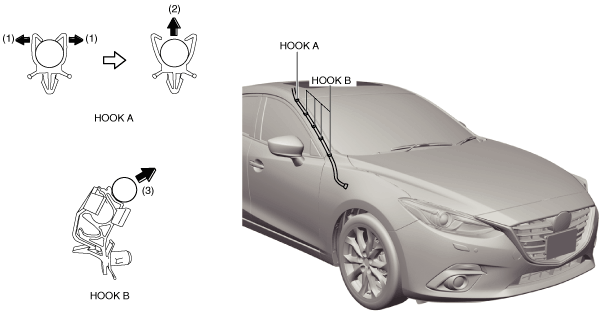

9.  Pull the front drain hose in the direction of the arrow in the order of (1), (2) and remove it while detaching hook A.

am3uuw00011000

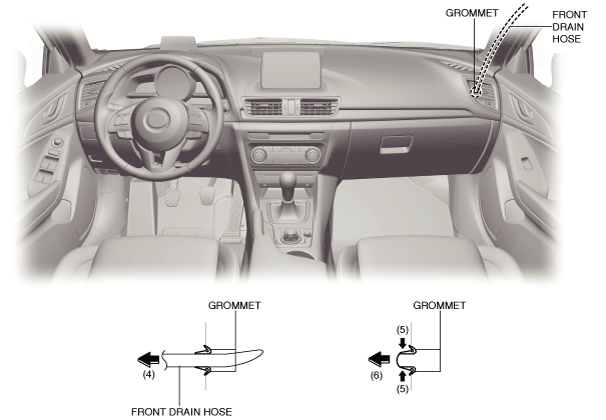

10.  Remove the front drain hose in the direction of the arrow (3) from hooks B.

11.  Remove the front drain hose in the direction of the arrow (4) from grommet.

am3zzw00013951

12.  Remove the grommet in the direction of the arrow (5), (6) shown in the figure.

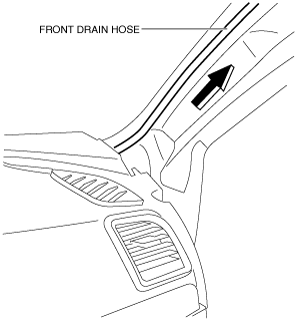

13.  Pull the front drain hose out from the A-pillar side.

am3uuw00011088

14.  Install in the reverse order of removal.

5HB

Driver-side

1.  Set the wheel blocks for both the front and rear wheels.

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

3.  Shift the selector lever from the P position to the D position (ATX).

4.  Remove the sunroof seaming welt.

5.  Remove the following parts:

(1)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(3)  Front map light (with sunglasses holder) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(4)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(5)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(8)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(9)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(10)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

6.  Set the tire house trim aside. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

7.  Remove the following parts:

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(3)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(5)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(6)  Trunk side trim (LH only) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(7)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(8)  Upper panel (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)

(9)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(10)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].)

(11)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(12)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(13)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(14)  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

(15)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(16)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(17)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(18)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(19)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

8.  Remove bolts.

am3zzw00017342

9.  Set the dashboard lower insulator aside.

10.  Remove nuts.

11.  Remove the dash gusset.

12.  Disconnect the front drain hose from the sunroof frame.

am3zzw00014622

13.  Pull the front drain hose in the direction of the arrow in the order of (1), (2) and remove it while detaching hook A.

am3zzw00013949

14.  Remove the front drain hose in the direction of the arrow (3) from hooks B.

15.  Remove the front drain hose in the direction of the arrow (4) from grommet.

am3zzw00013950

16.  Remove the grommet in the direction of the arrow (5), (6) shown in the figure.

17.  Pull the front drain hose out from the A-pillar side.

am3uuw00011086

18.  Install in the reverse order of removal.

Passenger-side

1.  Set the wheel blocks for both the front and rear wheels.

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

3.  Shift the selector lever from the P position to the D position (ATX).

4.  Remove the sunroof seaming welt.

5.  Remove the following parts:

(1)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(3)  Front map light (with sunglasses holder) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

(4)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(5)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(7)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(8)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(9)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(10)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

6.  Set the tire house trim aside. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

7.  Remove the following parts:

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)

(2)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(3)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(5)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(6)  Trunk side trim (LH only) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(7)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(8)  Upper panel (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)

(9)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

(10)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].)

(11)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)

(12)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(13)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(14)  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)

(15)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(16)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(17)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(18)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)

(19)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

8.  Disconnect the front drain hose from the sunroof frame.

am3zzw00017343

9.  Pull the front drain hose in the direction of the arrow in the order of (1), (2) and remove it while detaching hook A.

am3uuw00011000

10.  Remove the front drain hose in the direction of the arrow (3) from hooks B.

11.  Remove the front drain hose in the direction of the arrow (4) from grommet.

am3zzw00013951

12.  Remove the grommet in the direction of the arrow (5), (6) shown in the figure.

13.  Pull the front drain hose out from the A-pillar side.

am3uuw00011088

14.  Install in the reverse order of removal.
