REAR DRAIN HOSE REMOVAL/INSTALLATION


id091500443900


4SD

1.  Set the wheel blocks for both the front and rear wheels.

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

3.  Shift the selector lever from the P position to the D position (ATX).

4.  Remove the sunroof seaming welt.

5.  Remove the following parts:

(1)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(2)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(3)  Front map light (with sunglasses holder) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
(4)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(5)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(6)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(7)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(8)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(9)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(10)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

6.  Set the tire house trim aside. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

7.  Remove the following parts:

(1)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(2)  Upper panel (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)
(3)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
(4)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].)
(5)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
(6)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
(7)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
(8)  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)
(9)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(10)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(11)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
(12)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
(13)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

8.  Set the trunk side trim aside.

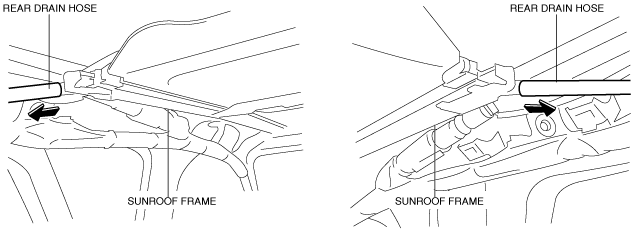

9.  Disconnect the rear drain hose from the sunroof frame.

am3zzw00017344

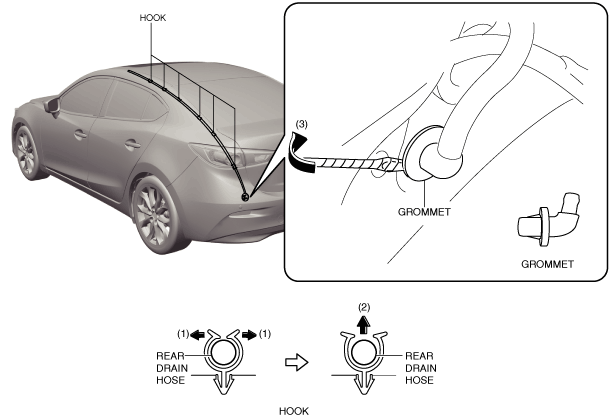

10.  Pull the rear drain hose in the direction of the arrow in the order of (1), (2) shown in the figure from hooks.

am3zzw00013952

11.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure, then remove the grommet in the direction of the arrow (3).

12.  Remove the rear drain hose.

13.  Install in the reverse order of removal.


5HB

1.  Set the wheel blocks for both the front and rear wheels.

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

3.  Shift the selector lever from the P position to the D position (ATX).

4.  Remove the sunroof seaming welt.

5.  Remove the following parts:

(1)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
(2)  Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
(3)  Front map light (with sunglasses holder) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
(4)  Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
(5)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(6)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(7)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
(8)  Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(9)  Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
(10)  B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

6.  Set the tire house trim aside. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

7.  Remove the following parts:

(1)  Rear package tray (See REAR PACKAGE TRAY REMOVAL/INSTALLATION.)
(2)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
(3)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(5)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(6)  Trunk side trim (LH only) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
(7)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
(8)  Upper panel (See UPPER PANEL REMOVAL.) (See UPPER PANEL INSTALLATION.)
(9)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)
(10)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [F35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [D66M-R].)
(11)  Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION.)
(12)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)
(13)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)
(14)  CD player (with CD player) (See CD PLAYER REMOVAL.) (See CD PLAYER INSTALLATION.)
(15)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
(16)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)
(17)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)
(18)  Front console (See FRONT CONSOLE REMOVAL/INSTALLATION.)
(19)  Headliner (See HEADLINER REMOVAL/INSTALLATION.)

8.  Set the trunk side trim aside. (RH only)

9.  Disconnect the rear drain hose from the sunroof frame.

am3zzw00017344

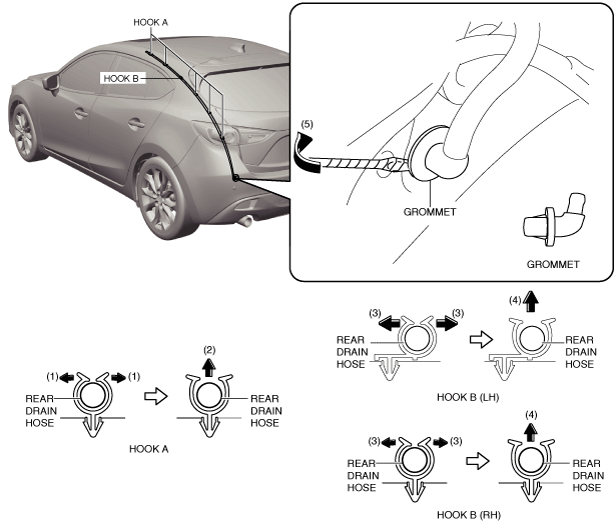

10.  Pull the rear drain hose in the direction of the arrow in the order of (1), (2) shown in the figure from hooks A.

am3zzw00013953

11.  Pull the rear drain hose in the direction of the arrow in the order of (3), (4) shown in the figure from hook B.

12.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure, then remove the grommet in the direction of the arrow (5).

13.  Remove the rear drain hose.

14.  Install in the reverse order of removal.
