SUNROOF MOTOR REMOVAL/INSTALLATION
id091500801800
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)
2. Remove the front map light. (with sunglasses holder) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

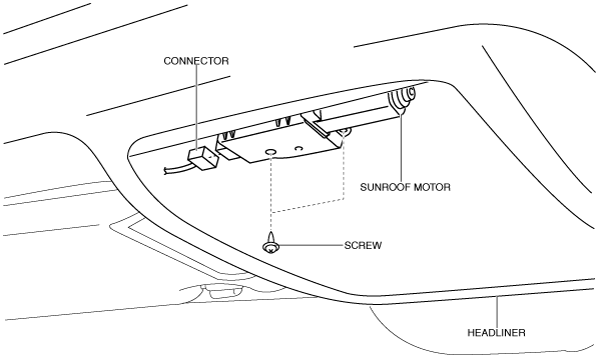

3. Disconnect the connector.
ac5wzw00001514
|
4. Remove screws.
5. Remove the sunroof motor.
6. Install in the reverse order of removal.
