AERODYNAMIC


id091600010400


Purpose, Function

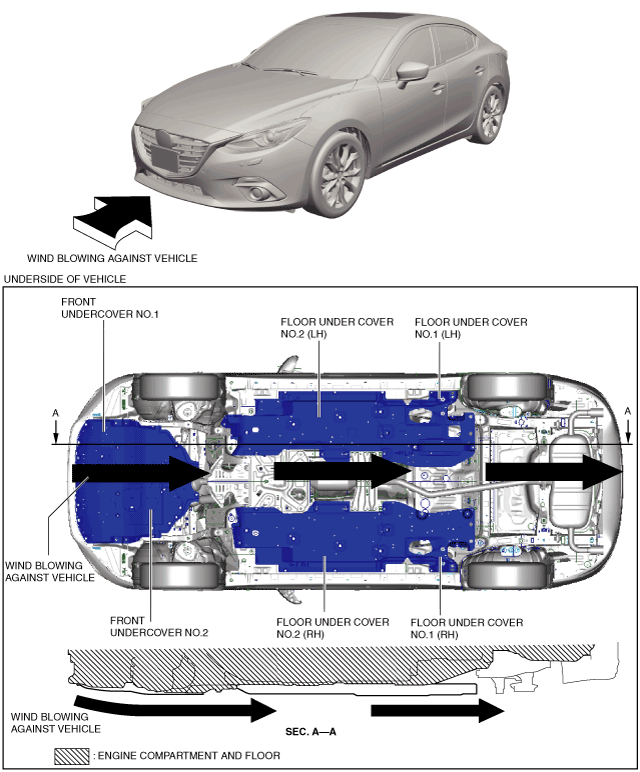

•  Undercovers have been adopted which flatten out the irregularities on the underside of the engine compartment and floor to rectify wind flowing under the vehicle while the vehicle is being driven.
am3zzn00004305

Construction

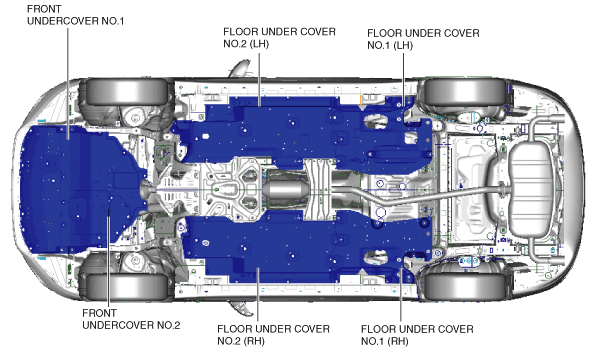

•  The following 4 types of undercovers are equipped.
―  Front undercover No.1
―  Front undercover No.2
―  Floor under cover No.1
―  Floor under cover No.2
am3uun00003158

Fail-safe

•  Function not equipped.
