ROOF MOLDING REMOVAL

id091600447800

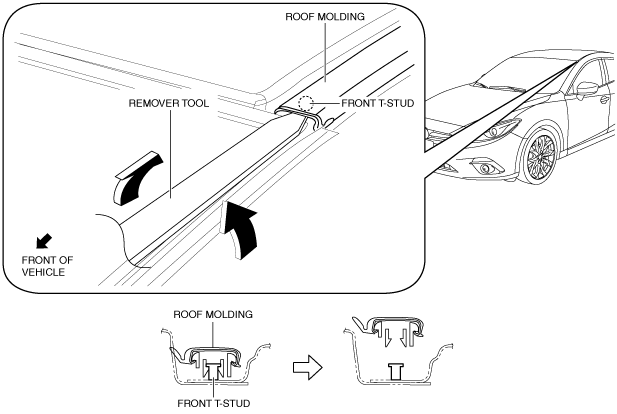

1.  Insert a remover tool into the position shown in the figure.

am3zzw00014824

2.  Move the remover tool in the direction of the arrows shown in the figure and detach the front T-stud from the roof molding.

3.  Rotate the roof molding in the direction of arrows shown in the figure and remove it starting from the clips at the front of the vehicle.

am3zzw00015994

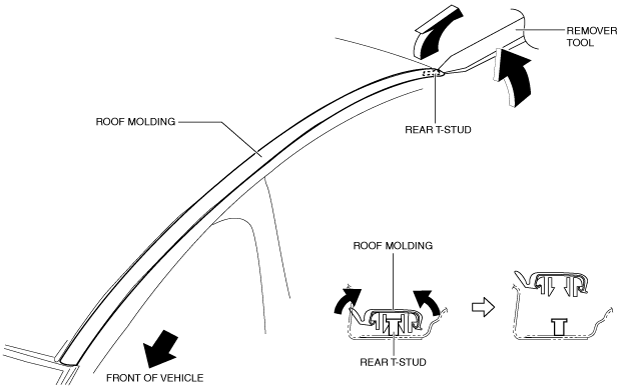

4.  Insert a remover tool in the position shown in the figure.

am3uuw00011723

5.  Move the remover tool in the direction of the arrows shown in the figure, detach the rear T-stud from the roof molding, and remove the roof molding.
