RADIATOR GRILLE DISASSEMBLY/ASSEMBLY


id091600460100

1.  Disassemble in the order indicated in the table.

am3uuw00012171

1
Front bumper upper face
2
Grille bracket
3
Ornament
4
Grille lower molding (RH)
5
Grille lower molding (LH)
6
Radiator grille reinforcement

2.  Assemble in the reverse order of disassembly.


Rivet Removal Note

Caution
•  Use the following drill diameter. If an inappropriate drill diameter is used, the front bumper upper face and the radiator grille reinforcement may be damaged.
―  Drill diameter: 4.5 mm

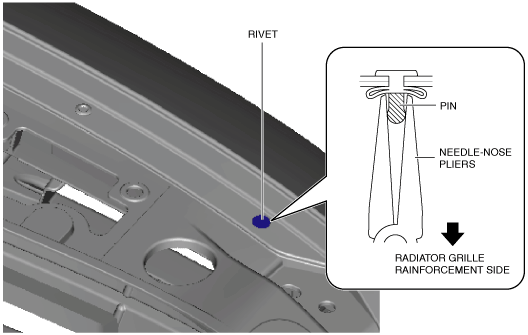

1.  Secure the rivet pin from the radiator grille reinforcement side using needle-nose pliers.

am3uuw00011727

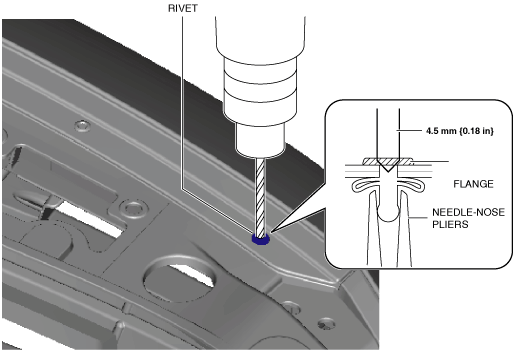

2.  Remove the rivet flange using a drill and remove the rivet.

am3uuw00011728

3.  Remove any rivet shavings from the front bumper upper face and the radiator grille reinforcement.
