REAR SASH MOLDING REMOVAL

id091600805100

Warning

•  Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.

1.  Remove the following parts:

(1)  Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION.)

(2)  Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION.)

Caution

•  When removing the double-sided adhesive tape, be careful not to damage the clip.

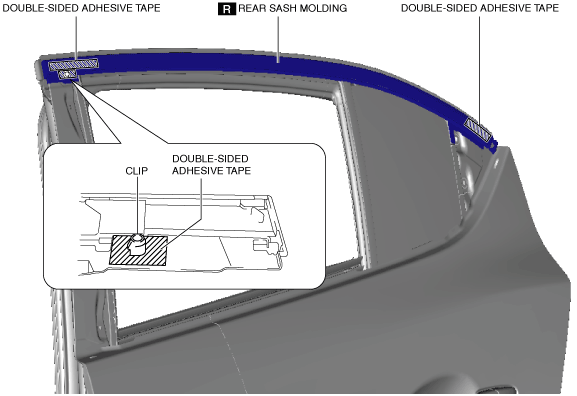

2.  Using a utility knife, carefully remove the double-sided adhesive tape in the locations shown in the figure.

am3uuw00011778

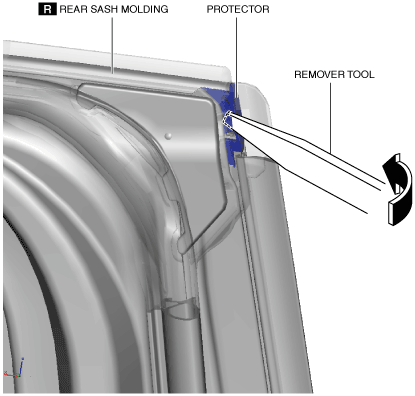

3.  Insert a remover tool into the position shown in the figure, move it in the direction of the arrow, and remove the protector.

am3uuw00011779

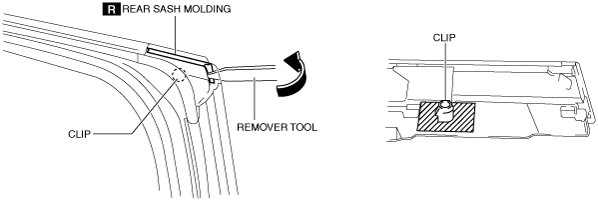

4.  Insert a remover tool into the position shown in the figure, move it in the direction of the arrow, and remove the clip.

am3uuw00011780

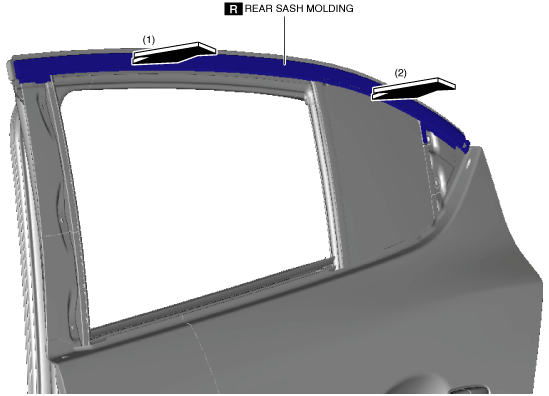

5.  Pull the rear sash molding in the direction of the arrows in the order of (1) and (2) shown in the figure, and remove the rear sash molding from the rear door panel.
