VENTILATOR GRILLE REMOVAL/INSTALLATION


id091700804600


Side Ventilator Grille


Removal

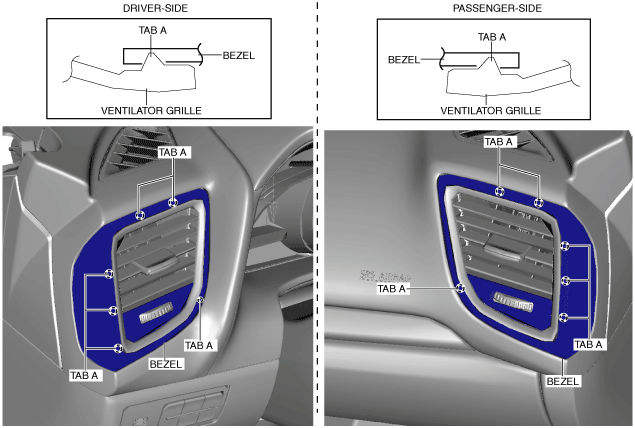

1.  Using the remover tool, release the ventilator grille tabs A at the positions shown in the figure and remove the bezel.

am3uuw00012179

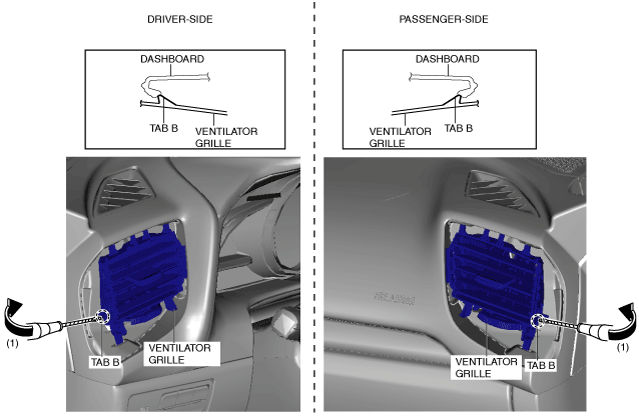

2.  Insert the tape-wrapped flathead screwdriver into the position shown in the figure, move the side ventilator grille in the direction of arrow (1) shown in the figure, and remove the tab B from the dashboard.

am3uuw00012180


Installation

1.  Assemble the ventilator grille and bezel.

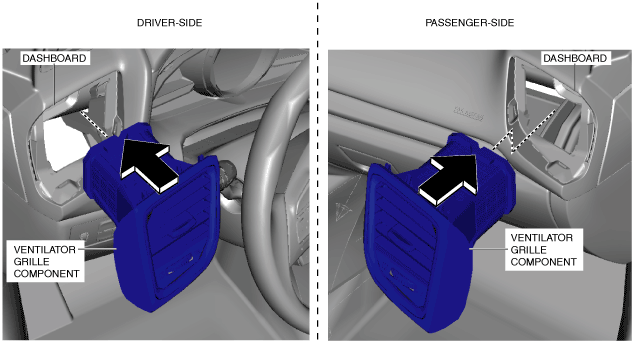

2.  Move the ventilator grille component in the direction shown by the arrow in the figure and install the ventilator grille component to the dashboard.

am3uuw00012181


Center Ventilator Grille

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [MZR 1.6].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 1.5, SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 1.5].)

2.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3.  Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION.)

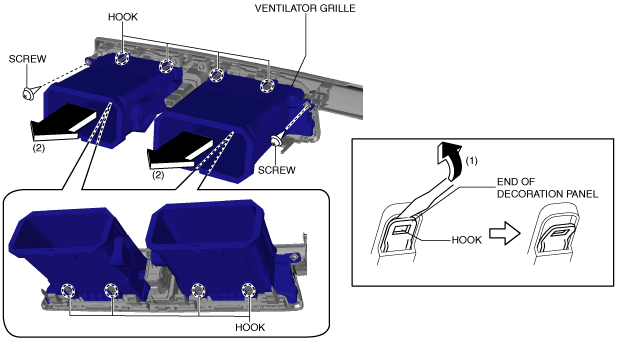

4.  Remove screws.

aaxjjw00012312

5.  Push the end of decoration panel in the direction of arrow (1) and detach hooks.

Caution
•  If excessive force is applied to the end of the decoration panel, it could damage the decoration panel. When disengaging the hooks, be careful not to apply excessive force to the hooks.

6.  Remove the ventilator grille in the direction of the arrow (2) shown in the figure.

7.  Install in the reverse order of removal.
