LIGHTING SYSTEMS

id091800010000


Outline

•  Front combination lights have been adopted with parts related to the front exterior lights grouped and housed together.
•  The following systems have been adopted to the headlights.
―  Discharge headlight system (With discharge headlight system)
―  Auto light system (With auto light system)
―  Headlight manual leveling system (With headlight manual leveling system)
―  Headlight auto leveling system (With headlight auto leveling system)
―  Adaptive front lighting system (AFS) (With adaptive front lighting system (AFS))
―  Running light system (With running light system)
―  High beam control (HBC) system (With high beam control (HBC) system)
―  Auto light-off system (With auto light-off system)
―  Coming home light system (With coming home light system)
―  Leaving home light system (With leaving home light system)
•  Front fog lights have been adopted. (With front fog lights)
•  LED type front fog lights have been adopted. (With LED type front fog lights)
•  Rear fog light has been adopted. (With rear fog light)
•  Emergency signal system (ESS) has been adopted.
•  LED type parking lights have been adopted. (With discharge headlight system)
•  LED type side turn lights have been adopted.
•  LED type brake lights/taillights have been adopted. (With rear combination lights (LED type))
•  LED type taillights have been adopted. (With trunk lid lights (4SD)/liftgate lights (5HB) (LED type))
•  LED type high-mount brake light has been adopted.
•  A room light control system has been adopted in which illumination time and illumination level of the room lights change.

Specification

Item

Spec (W) × Quantity
Exterior
Headlight LO bulb
Halogen type
55 × 2
Headlight HI bulb (without running light system)
60 × 2
Headlight HI/running light bulb (with running light system)
55 / 15 × 2
Headlight HI/LO bulb
Discharge type
35 × 2
Parking light bulb (without discharge headlight system)
5 × 2
Parking light/running light (LED)*1 (with discharge headlight system)
4 / 14
Front turn light bulb
21 × 2
Front fog light
Bulb type
55 × 2
LED type*2
12
Side turn light (LED)
0.6
Rear turn light bulb
21 × 2
Brake light/taillight
Bulb type
21 / 5 × 2
LED type*3
2.2 / 2.1
Back-up light bulb
4SD
16 × 2
5HB
21 × 2 (without rear fog light) / 21 × 1 (with rear fog light)
Rear fog light bulb
21 × 1
Taillight (LED) (trunk lid light (4SD)/liftgate light (5HB))
0.6
High-mount brake light (LED)
Rear window glass: Clear glass (4SD)
1.8
Rear window glass: Dark tinted glass (4SD)
2.4
5HB
1.8
License plate light bulb
5 × 2
Interior
Front map light bulb
Dual light type
8 × 2
Single light type
10 × 1
Rear map light bulb
10 × 1
Trunk compartment light bulb (4SD)
3 × 1
Cargo compartment light bulb (5HB)
5 × 1
Glove compartment light bulb
1.7 × 1
Vanity mirror illumination bulb
2 × 2

*1  :The LED for the parking light cannot be replaced separately. If there is any malfunction in the LED, replace the front combination light as a single unit.
*2  :The LED for the LED type front fog light cannot be replaced separately. If there is any malfunction in the LED, replace the front fog light as a single unit.
*3  :The LED for the LED type brake light/taillight cannot be replaced separately. If there is any malfunction in the LED, replace the rear combination light as a single unit.

Structural View


Exterior

am3zzn00003849

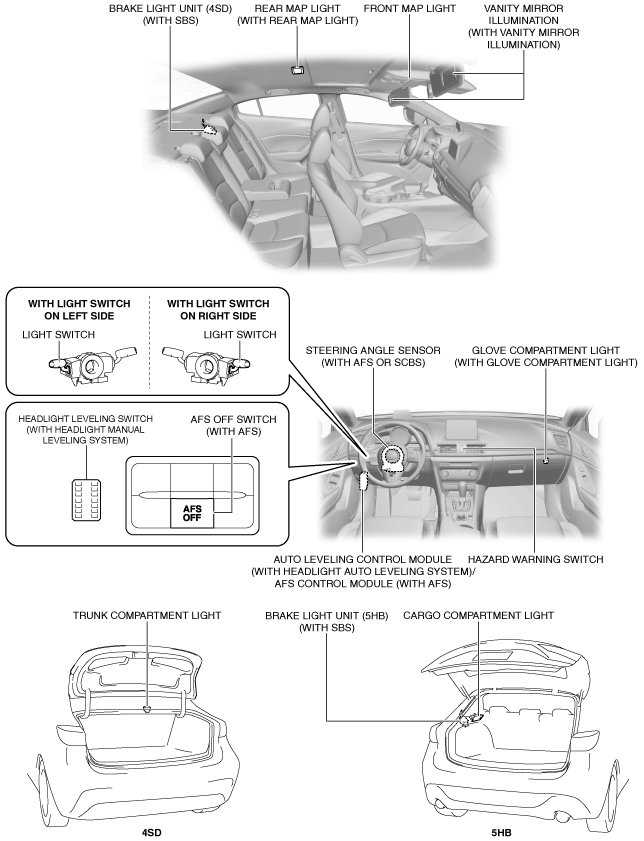

Interior
